(SP-4005) compatible with vehicles from the following manufacturers: VOLVO.
Assemble with: C015 / S201 / S202 / S413 / S422 / SC10358

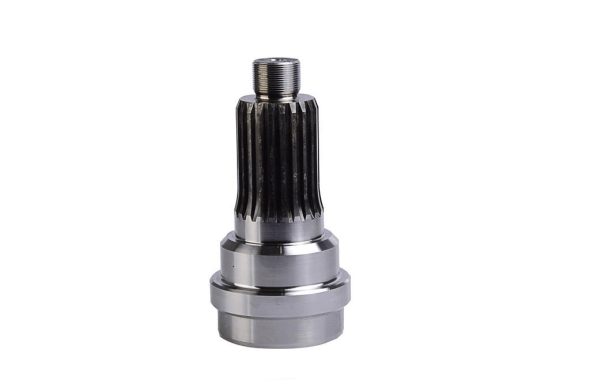

Description: MIDSHIP TUBE WITH THREAD 1"1/4X18 F.P.P 22 SPLINE (E)
Applications:
- Cardan
Material: Steel
Extra: MONTA COM SUPORTE REI: R-2000 / R-2002T / R-2034 / R-2036 / R-2276
Original code: 101089 | 6885510 | 54569
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-4005 | VOLVO | Cardan | 139,00 | 85,50 | 60,00 | 22-E | 1 1/4X18F.P.P | 49,60 | 54,80 |
