S-323 Terminal
Embalagem com 1 peça
Peso: 6,35 (kg)

(S-323) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN, VOLVO, AGRALE e IVECO.

Assemble with: C002 / S323N / S366 / SC10344 / SC10358 / SP3001 / SP3012 / SP3015 / SP3022 / SP3022N

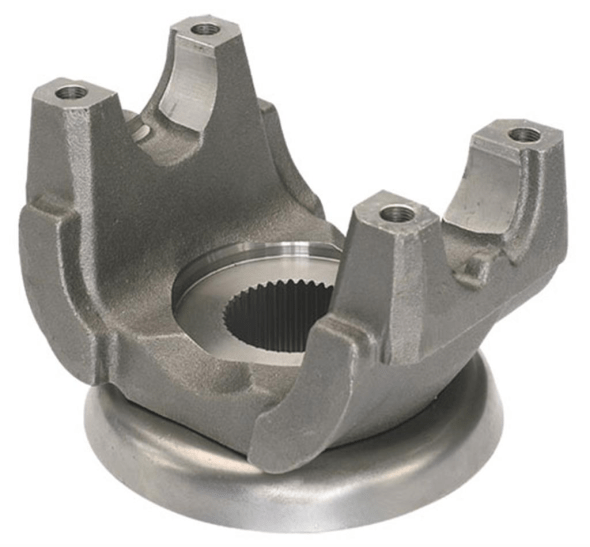

Description: END YOKE 46 SPLINE (E) THREAD 1/2"X20 F.P.P (MINOR JOINT)

Applications:
- Diferencial

Extra: ARTICULAÇÃO MAIOR / DIFERENCIAL: MD145

manufacturers
FORD
VOLKSWAGEN
VOLVO
AGRALE
IVECO
Access catalog
VOLKSWAGEN

Código original: 2RR525283

Material: Aço

Ônibus:
Ônibus 17240OT
VW:
26300 24220 26260 26310HD 26310 24250 24200 31310
VOLKSWAGEN:
Costellation 17320E Costellation 24320 Constellation 26280
Constellation:
26320 Costellation 31260 Constellation
VOLVO

Material: Aço

Volvo:
VM270 VM260
FORD

Código original: 2RR525283

Material: Aço

Cargo:
Cargo 2623 Cargo 2626 Cargo 2628E Cargo 2629 Cargo 5032E Cargo 2422 Cargo 2425 Cargo 2630 Cargo 2628 Cargo 6332E Cargo 2831 Cargo 2932E Cargo 5031 Cargo 2633 Cargo 2631 Cargo 4031 Cargo 4331 Cargo 3133 Cargo 2622E Cargo 2632E Cargo 4432E
IVECO

Código original: 503522916

Material: Aço

Tector:
Tector
AGRALE

Material: Aço

Ônibus:
Ônibus MT12.0 Ônibus MT15.0 Ônibus M14.0
Terminal
Terminal
ReferenceCrossheadMeasure A (mm)Measure B (mm)Crosshead Diameter (mm)Stretch marksThreadCrosshead Length (mm)Diameter A Smaller (mm)Diameter B Bigger (mm)
S-3235-515X14582,649,246-E1/2"15457,560,2
Reference
S-323
Crosshead
5-515X
Measure A (mm)
145
Measure B (mm)
82,6
Crosshead Diameter (mm)
49,2
Stretch marks
46-E
Thread
1/2"
Crosshead Length (mm)
154
Diameter A Smaller (mm)
57,5
Diameter B Bigger (mm)
60,2
