(S-316) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C008 / S305 / S311 / S350 / S623 / SC10347 / SC10358 / SP3004 / SP3006 / SP3007 / SP3016 / SP3031

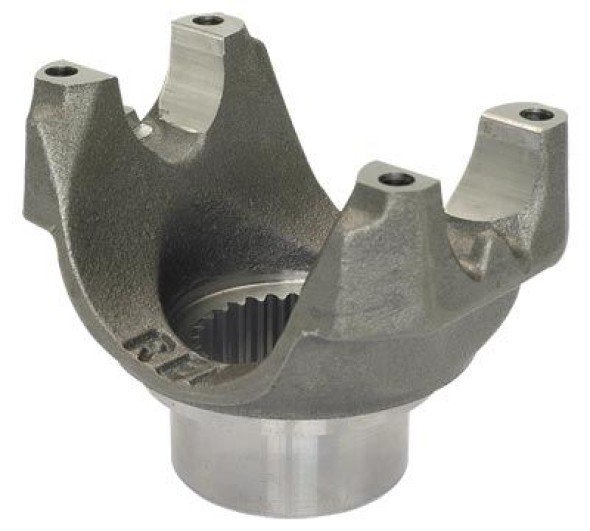

Description: END YOKE 26 SPLINE (E) THREAD M10X1,0MM
Applications:
- Diferencial
Material: Steel
Extra: DIFERENCIAL: HL4 / PEÇA COM PISTA PARA UM RETENTOR
Original code: 6943537045 | 048951 | S-623 | 35156 | 801707 | FL1377 | ST25
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-316 | MERCEDES BENZ | Diferencial | 113,00 | 67,90 | C-008 / SPL90-1X | 126,00 | 41,30 | M10X1,00 | 26-E | 50,30 | 55,20 |
