(S-307) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C004 / S300 / S309 / SC10308 / SC10342 / SC10358 / SP3004 / SP3009 / SP3010 / SP3017 / SP3050

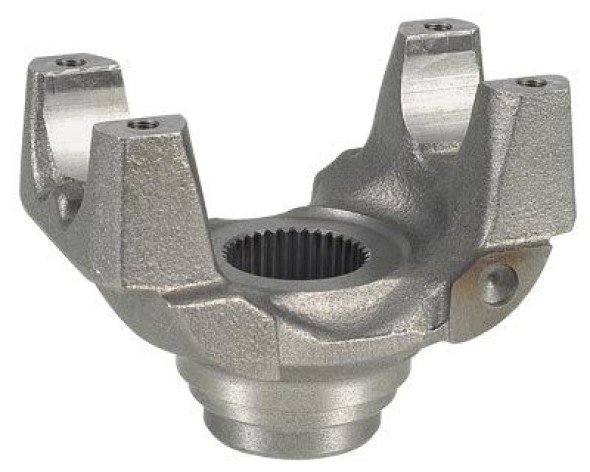

Description: END YOKE 34 SPLINE (E) THREAD M10X1,0MM
Applications:
- Central
Material: Nodular
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF
Original code: 0004100430 | 048521 | S300 | 41094 | 801701 | FL1370 | HTM601 | ST13A
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-307 | MERCEDES BENZ | Central | 114,50 | 55,70 | C-004 / 5-438X | 134,90 | 47,60 | M10X1,00 | 34-E | 42,20 | 45,14 |
