(S-319) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN e IVECO.
Assemble with: C002 / S366 / SC10344 / SC10358 / SP3001 / SP3012 / SP3015 / SP3022 / SP3022N

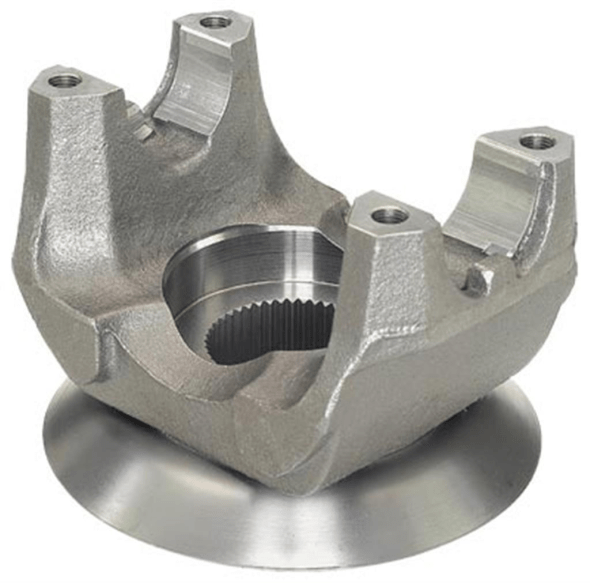

Description: END YOKE 46 SPLINE (E) THREAD 1/2"X20 F.P.P
Applications:
- Diferencial
Material: Steel
Extra: ARTICULAÇÃO MENOR
Original code: 301011 | 070148
Original code: 301011 | 070148
Original code: 301011 | 070148
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-319 | VOLKSWAGEN, FORD, IVECO | Diferencial | 145,00 | 82,60 | C-002 / 5-515X | 157,00 | 49,20 | 1/2"X20F.P.P | 46-E | 57,50 | 60,20 |
