(S-350) compatible with vehicles from the following manufacturers: MERCEDES BENZ e VOLVO.
Assemble with: C008 / S305 / S311 / SC10347 / SC10358 / SP3004 / SP3006 / SP3007 / SP3016 / SP3017 / SP3031

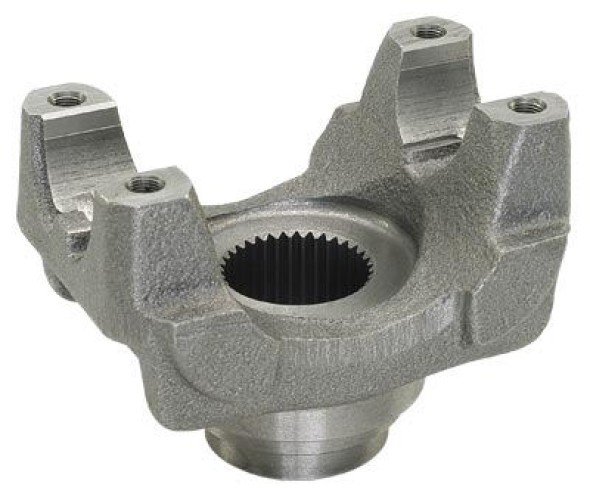

Description: END YOKE 34 SPLINE (E) THREAD M10X1,0MM
Applications:
- Central
Material: Steel
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF
Original code: 0004100930 | 048981 | S305 | 41083A | 801700 | FL1372 | HTM609 | ST12A
Original code: 0004100930 | 048981 | S305 | 41083A | 801700 | FL1372 | HTM609 | ST12A

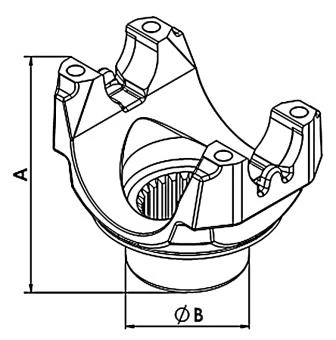

| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-350 | MERCEDES BENZ, VOLVO | Central | 109,50 | 55,70 | C-008 / SPL90-1X | 126,00 | 41,30 | M10X1,00 | 34-E | 42,20 | 45,14 |
