(S-321) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN, AGRALE, LINHA AMARELA e IVECO.
Assemble with: C002 / S321N / S366 / SC10344 / SC10358 / SP3001 / SP3012 / SP3015 / SP3022 / SP3022N

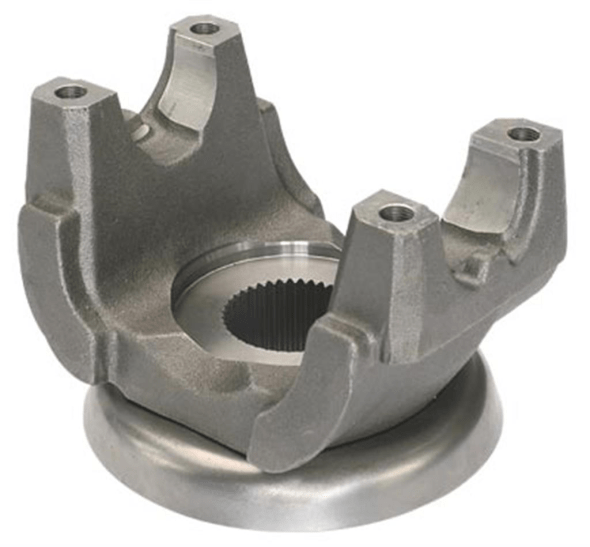

Description: END YOKE 39 SPLINE (E) THREAD 1/2"X20 F.P.P
Applications:
- Diferencial
Material: Steel
Extra: DIFERENCIAIS: 230415 / MS240 / MS245 / MS155 / MS145 / RS155 / RS240
Original code: TMG525283 | 6112009098002 | 503356029 | 6477211 | 070449 | 301108 | ST04 | S321N
Original code: TMG525283 | 6112009098002 | 503356029 | 6477211 | 070449 | 301108 | ST04 | S321N
Original code: TMG525283 | 6112009098002 | 503356029 | 6477211 | 070449 | 301108 | ST04 | S321N
Original code: TMG525283 | 6112009098002 | 503356029 | 6477211 | 070449 | 301108 | ST04 | S321N
Original code: TMG525283 | 6112009098002 | 503356029 | 6477211 | 070449 | 301108 | ST04 | S321N
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-321 | VOLKSWAGEN, FORD, IVECO, AGRALE, LINHA AMARELA | Diferencial | 139,00 | 76,10 | C-002 / 5-515X | 157,00 | 49,20 | 1/2 | 39-E | 48,80 | 51,40 |
