(S-305) compatible with vehicles from the following manufacturers: MERCEDES BENZ e VOLVO.
Assemble with: C008 / S311 / SC10347 / SC10358 / SP3004 / SP3006 / SP3007 / SP3016 / SP3017 / SP3031

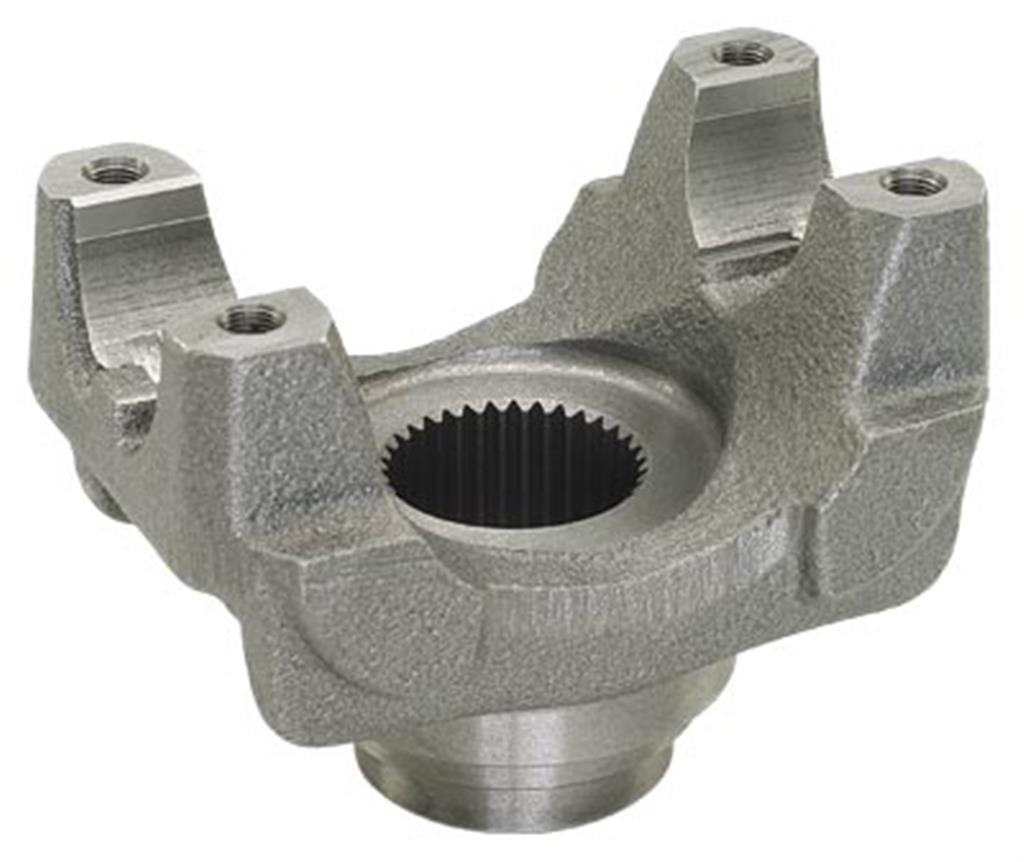

Description: END YOKE 34 SPLINE (E) THREAD M10X1,0MM
Applications:
- Cardan
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-305 | SPL-90-1X | 109,5 | 55,7 | 41,3 | 34-E | M10 | 126 | 42,2 | 45,14 |
