(SP-4002) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S407 / S415 / S425 / S464

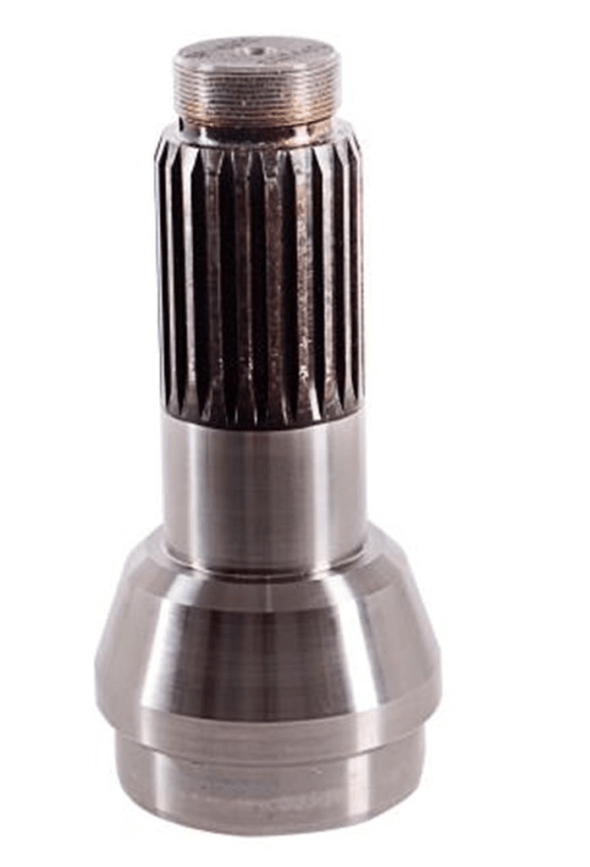

Description: MIDSHIP TUBE WITH THREAD M44X1,50MM 22 SPLINE (E)
Applications:
- Cardan
Material: Steel
Extra: MONTA COM SUPORTE REI: R-196 / R-196A / R-331 / R-331A / R-4007 / R-4009 / R-4010 / R-4017
Original code: 201086 | 801512 | NC12008 | PT1431 | SP33 | 208086 | 54470
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-4002 | SCANIA | Cardan | 162,00 | 85,40 | 55,00 | 22-E | M44X1,50 | 49,60 | 54,80 |
