(SP-3088) compatible with vehicles from the following manufacturers: VOLKSWAGEN e VOLVO.
Assemble with: S-947 / SC-10387

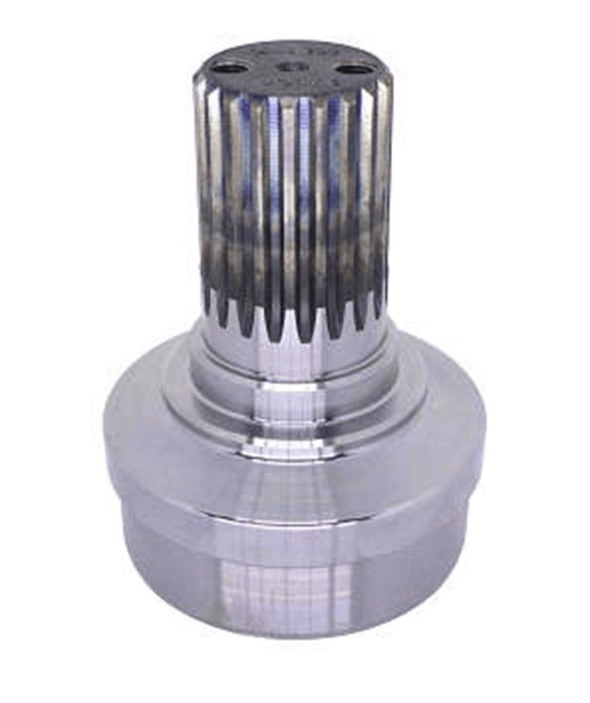

Description: MIDSHIP TUBE WITH THREAD INTERNAL M12X1,50MM 20 ESTRIAS (E)
Applications:
- Central
Material: Steel
Original code:
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3088 | VOLVO, VOLKSWAGEN | Central | 126,00 | 112,40 | 55,00 | 20-E | M12X1,50 | 49,10 | 54,10 |
