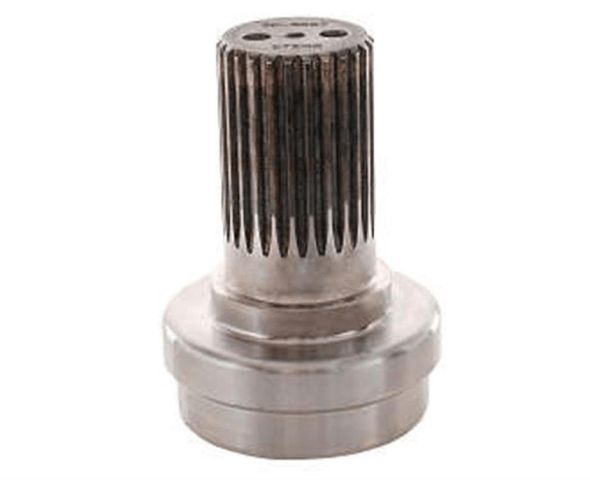

SP-3087 Ponteira com rosca (fixa)
Embalagem com 1 peça
Peso: 5,55 (kg)

(SP-3087) compatible with vehicles from the following manufacturers: VOLKSWAGEN.

Assemble with: S236 / SC-10387

Description: MIDSHIP TUBE WITH THREAD INTERNAL M12X1,50MM 26 ESTRIAS (E)

Applications:
- Cardan

Extra: MONTA COM SUPORTE REI: R-2004 / R-2006

manufacturers
VOLKSWAGEN
Access catalog
VOLKSWAGEN


Código original:

Material: Aço

Group 1:
Constellation 30330
Ponteira com rosca (fixa)
Ponteira com rosca (fixa)
ReferenceMeasure A (mm)Measure B (mm)Measure C (mm)Stretch marksMeasure D (mm)ThreadDiameter A Smaller (mm)Diameter B Bigger (mm)
SP-3087122,71087026 - E69,8M12X1,5063,7869,95
Reference
SP-3087
Measure A (mm)
122,7
Measure B (mm)
108
Measure C (mm)
70
Stretch marks
26 - E
Measure D (mm)
69,8
Thread
M12X1,50
Diameter A Smaller (mm)
63,78
Diameter B Bigger (mm)
69,95
