(SP-3081) compatible with vehicles from the following manufacturers: TOYOTA.
Assemble with: S743 / S744 / S745 / SC10407 / SP3080 / SP3082

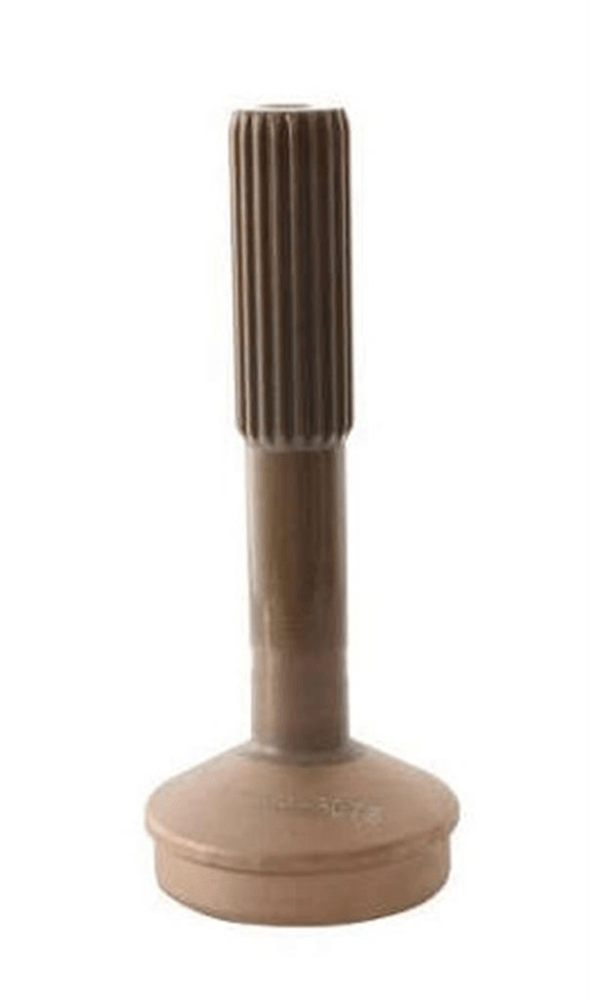

Description: SLIP STUBE SHAFT 22 SPLINE (E)
Applications:
- Cardan
Material: Steel
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento da face ate encosto tubo |
B ( mm ) Ø Base da ponteira |
C ( mm ) Ø Estrias |
D ( mm ) Comprimento das estrias |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| SP-3081 | TOYOTA | Cardan | 181,00 | 71,70 | 36,40 | 90,00 | 22-E | 33,20 | 36,40 |
