(SP-3079) compatible with vehicles from the following manufacturers: TOYOTA.
Assemble with: C011 / S732 / S733 / S734 / S735 / SC10395 / SC10396 / SP3077 / SP3078

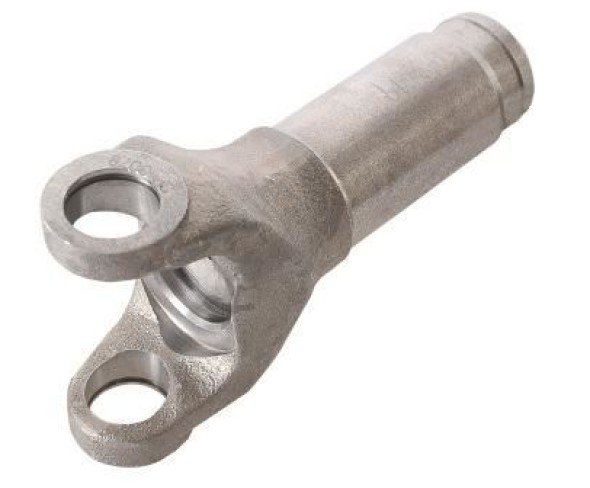

Description: SLIP YOKE 18 SPLINE (E)
Applications:
- Cardan
Material: Nodular
Extra: VEICULOS 2005 Á 2015
Original code: 5001906 | 41719 | 5019073 | NC08017 | RLV627 | SL49
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3079 | TOYOTA | Cardan | 172,50 | 92,00 | C-011 / 5-273X | 27,00 | 18-E | 30,20 | 34,00 |
