(SP-3078) compatible with vehicles from the following manufacturers: TOYOTA.
Assemble with: S732 / S733 / S734 / S735 / SC10395 / SC10396 / SP3077 / SP3079

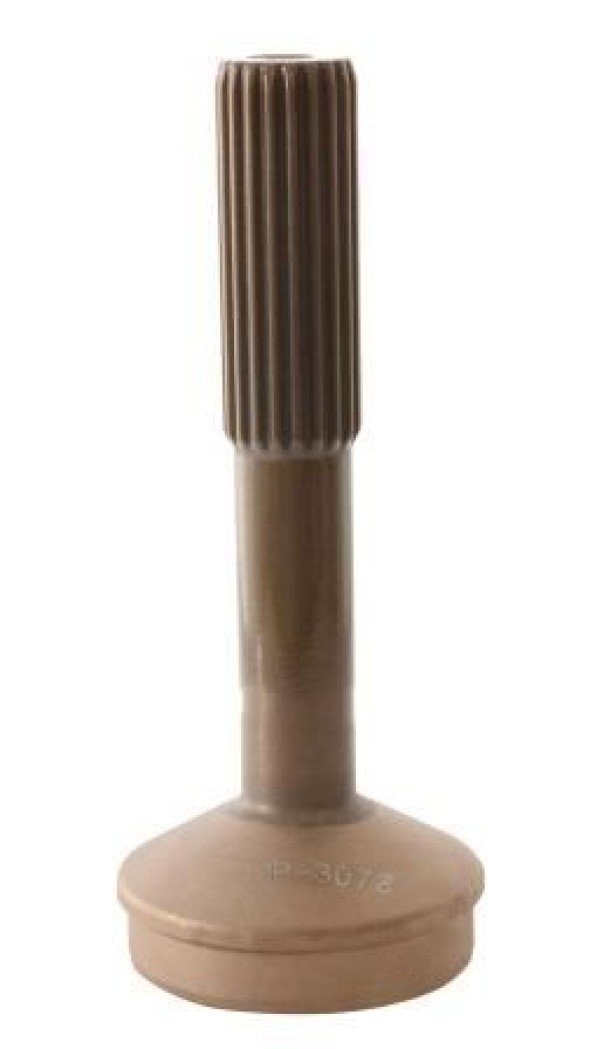

Description: SLIP STUBE SHAFT 20 SPLINE (E)
Applications:
- Cardan
Material: Steel
Extra: VEICULOS 2005 Á 2015
Original code: 41720 | NC11013 | 5001918
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento da face ate encosto tubo |
B ( mm ) Ø Base da ponteira |
C ( mm ) Ø Estrias |
D ( mm ) Comprimento das estrias |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| SP-3078 | TOYOTA | Cardan | 202,00 | 86,00 | 33,20 | 91,50 | 20-E | 29,60 | 33,20 |
