(SP-3077) compatible with vehicles from the following manufacturers: TOYOTA.
Assemble with: S732 / S733 / S734 / S735 / SC10395 / SC110396 / SP3078 / SP3079

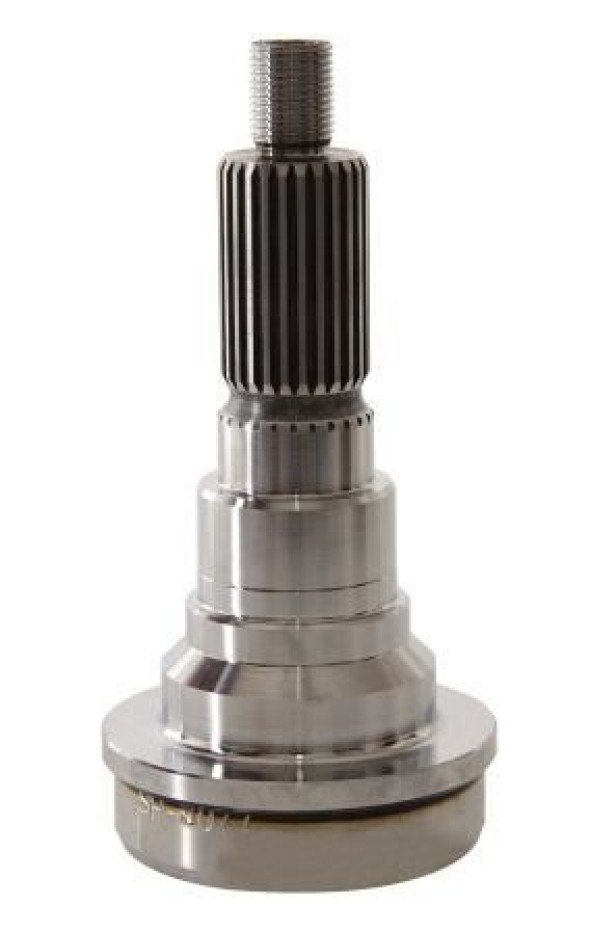

Description: MIDSHIP TUBE WITH THREAD 5/8"X18 F.P.P 26 SPLINE (E)
Applications:
- Cardan
Material: Steel
Extra: VEICULOS 2005 Á 2015 / MONTA COM SUPORTE REI: R-1060
Original code: 41723 | 5001931
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3077 | TOYOTA | Cardan | 117,00 | 72,30 | 30,00 | 26-E | 5/8"X18F.P.P | 26,30 | 28,35 |
