(SP-3073) compatible with vehicles from the following manufacturers: MITSUBISHI.
Assemble with: S723 / S725 / S726 / SC-10393 / SP3072

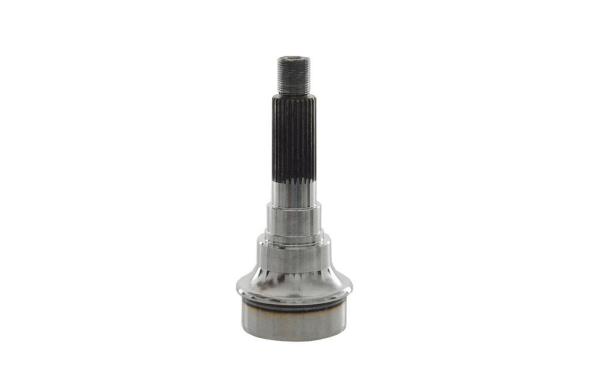

Description: MIDSHIP TUBE WITH THREAD M22X1,50MM 27 SPLINE (E)
Applications:
- Cardan
Extra: VEÍCULOS 2007 EM DIANTE / MONTA COM SUPORTE REI: R-7000 / R-7014 / R-7016
Material: Aço
| Reference | Measure A (mm) | Measure B (mm) | Measure C (mm) | Stretch marks | Measure D (mm) | Thread | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|
| SP-3073 | 134 | 70,5 | 30 | 27 - E | 29,5 | M22 X 1,50 | 26,5 | 29,5 |
