(SP-3067) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: C004 / C023 / S309 / SP-3068

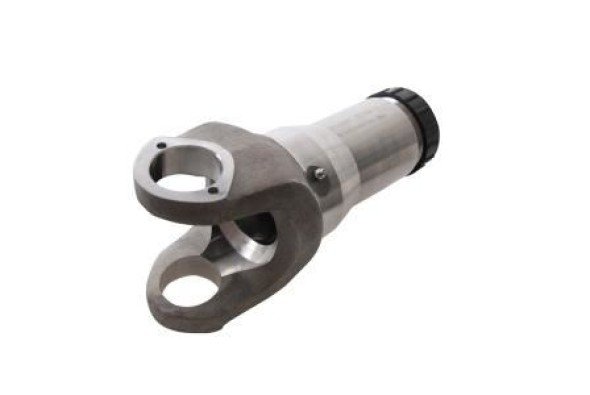

Description: SLIP YOKE 16 SPLINE (R)
Applications:
- Cardan
Material: Steel
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3067 | LINHA AMARELA | Cardan | 241,50 | 134,90 | C-004 / 5-438X / 5-279X / 5-438X | 47,60 | 16-R | 55,25 | 63,50 |
