(SP-3062) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN, CHEVROLET GMC e AGRALE.
Assemble with: C013 / SP3055

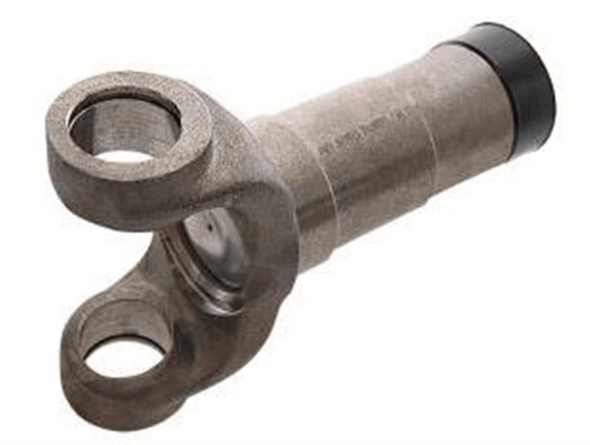

Description: SLIP YOKE 16 SPLINE (R)
Applications:
- Cardan
Material: Nodular
Original code: 2RD521353 | BC8T4841A | 2994926 | 6006009012007 | 33788KX | 301087 | 801409 | HLV608 | LV1042 | NC08016 | SL08
Original code: 2RD521353 | BC8T4841A | 2994926 | 6006009012007 | 33788KX | 301087 | 801409 | HLV608 | LV1042 | NC08016 | SL08
Original code: 2RD521353 | BC8T4841A | 2994926 | 6006009012007 | 33788KX | 301087 | 801409 | HLV608 | LV1042 | NC08016 | SL08
Original code: 2RD521353 | BC8T4841A | 2994926 | 6006009012007 | 33788KX | 301087 | 801409 | HLV608 | LV1042 | NC08016 | SL08
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3062 | VOLKSWAGEN, CHEVROLET GMC, FORD, AGRALE | Cardan | 133,00 | 106,30 | C-013 / 5-160X | 30,20 | 16-R | 30,00 | 35,00 |
