(SP-3060) compatible with vehicles from the following manufacturers: FORD, CHEVROLET GMC e AGRALE.
Assemble with: C011 / SP-3057

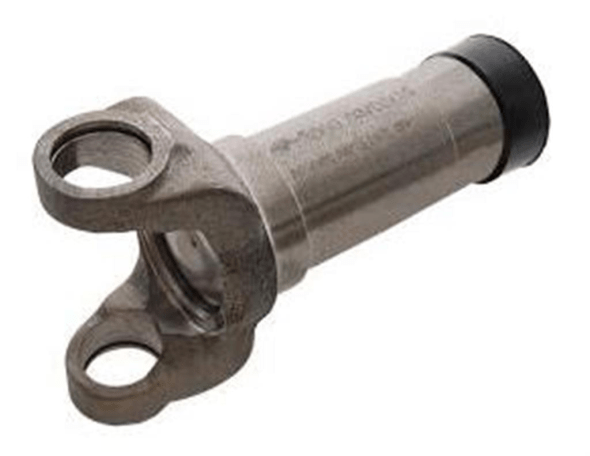

Description: SLIP YOKE 16 SPLINE (R)
Applications:
- Cardan
Material: Nodular
Original code: BD2Y4841A | 94628612 | 6003009006006 | 2314491KX | 801431 | LV1039 | NC08002
Original code: BD2Y4841A | 94628612 | 6003009006006 | 2314491KX | 801431 | LV1039 | NC08002
Original code: BD2Y4841A | 94628612 | 6003009006006 | 2314491KX | 801431 | LV1039 | NC08002
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3060 | CHEVROLET GMC, FORD, AGRALE | Cardan | 153,00 | 92,00 | C-011 / 5-273X | 27,00 | 16-R | 30,00 | 35,00 |
