(SP-3057) compatible with vehicles from the following manufacturers: FORD e CHEVROLET GMC.
Assemble with: SP-3060

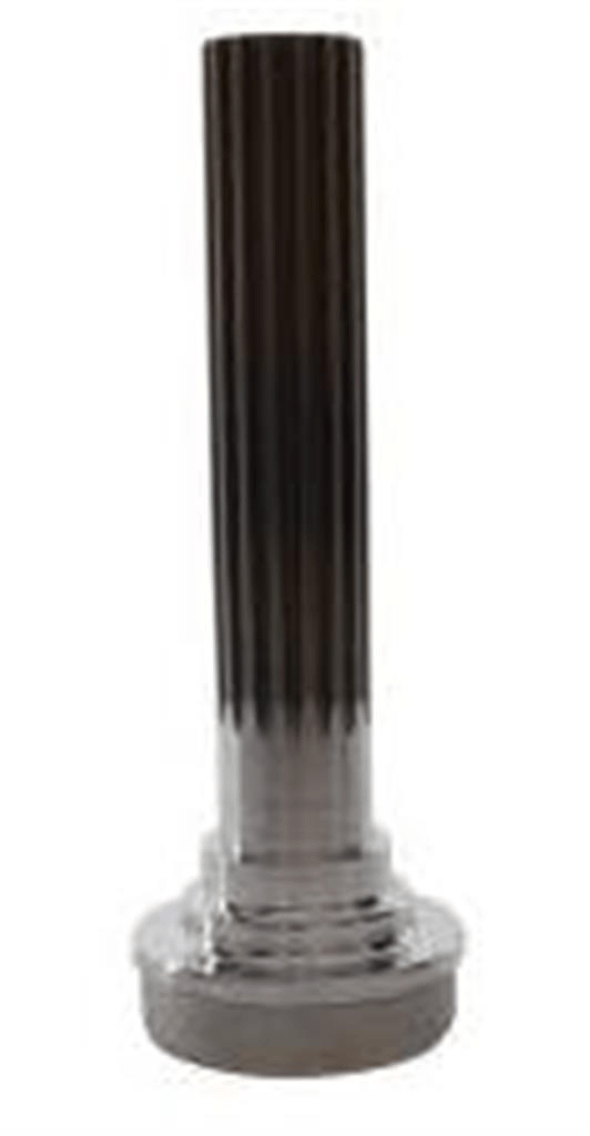

Description: SLIP STUBE SHAFT 16 SPLINE (R)
Applications:
- Cardan
Material: Steel
Extra: COM BASE PARA ROLAMENTO
Original code: 801602 | NC11003 | PT1017 | RPT626 | SP10 | 253501
Original code: 801602 | NC11003 | PT1017 | RPT626 | SP10 | 253501
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento da face ate encosto tubo |
B ( mm ) Ø Base da ponteira |
C ( mm ) Ø Estrias |
D ( mm ) Comprimento das estrias |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| SP-3057 | CHEVROLET GMC, FORD | Cardan | 204,00 | 72,30 | 34,90 | 140,00 | 35,00 | 16-R | 29,60 | 34,80 |
