(SP-3053) compatible with vehicles from the following manufacturers: FORD.
Assemble with: SP-3064

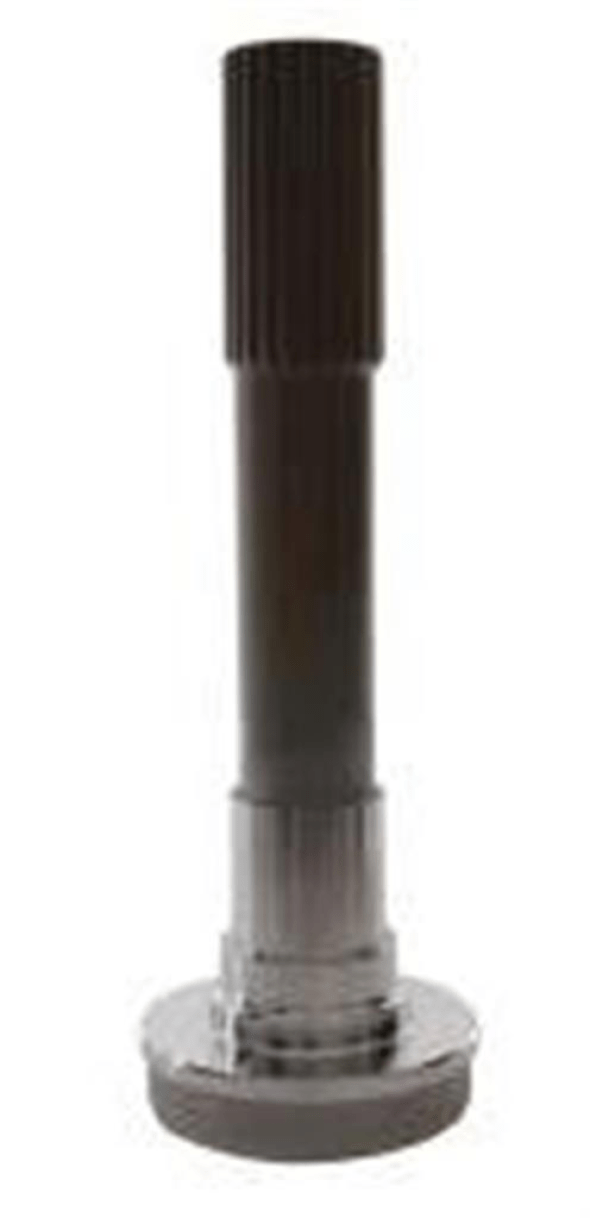

Description: SLIP STUBE SHAFT 24 SPLINE (E)
Applications:
- Cardan
Material: Steel
Extra: COM BASE PARA ROLAMENTO
Original code: 41529 | NC11004 | RPT638 | 3532331
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento da face ate encosto tubo |
B ( mm ) Ø Base da ponteira |
C ( mm ) Ø Estrias |
D ( mm ) Comprimento das estrias |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| SP-3053 | FORD | Cardan | 251,00 | 85,00 | 39,70 | 76,00 | 40,00 | 24-E | 35,70 | 39,70 |
