(SP-3048) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S339 / S359 / S395 / S701 / S703 / SC10306 / SP3036 / SP3037

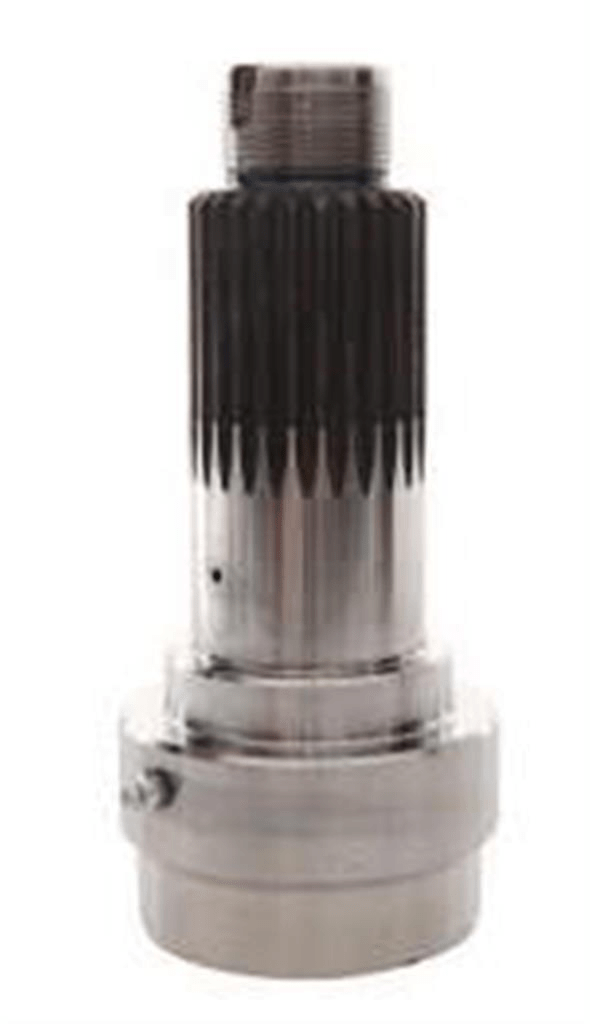

Description: MIDSHIP TUBE WITH THREAD M40X1,50MM 26 SPLINE (E)
Applications:
- Cardan
Material: Steel
Extra: SUBSTITUI: SP-3005 / MONTA COM SUPORTE REI: R-3019E / R-3020 / R-3071 / R-3072
Original code: 3305 | 41086 | 801503 | NC12012 | PT1334 | RPT605 | SP13 | 3354110102 | 3554110102 | SP3005 | 54556C
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3048 | MERCEDES BENZ | Cardan | 151,00 | 82,00 | 55,00 | 26-E | M40X1,50 | 48,90 | 54,65 |
