(SP-3043) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S225 / S226 / S227 / S233 / SC10340 / SC10358 / SP3038 / SP3040

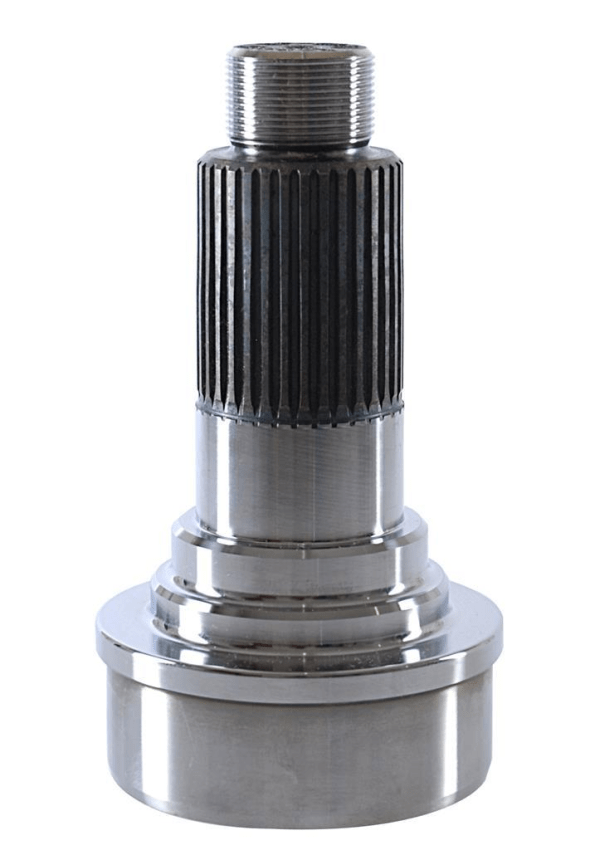

Description: MIDSHIP TUBE WITH THREAD 1"1/4X18 F.P.P 34 SPLINE (E)
Applications:
- Cardan
Material: Steel
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF / MONTA COM SUPORTE REI: R-3030 / R-3034 / R-3062 / R-3064
Original code: 41015 | SP12A | 453521
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3043 | MERCEDES BENZ | Cardan | 107,50 | 84,40 | 45,00 | 34-E | 1 1/4X18F.P.P | 41,80 | 44,60 |
