(SP-3042) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN e IVECO.
Assemble with: S229 / SC10358

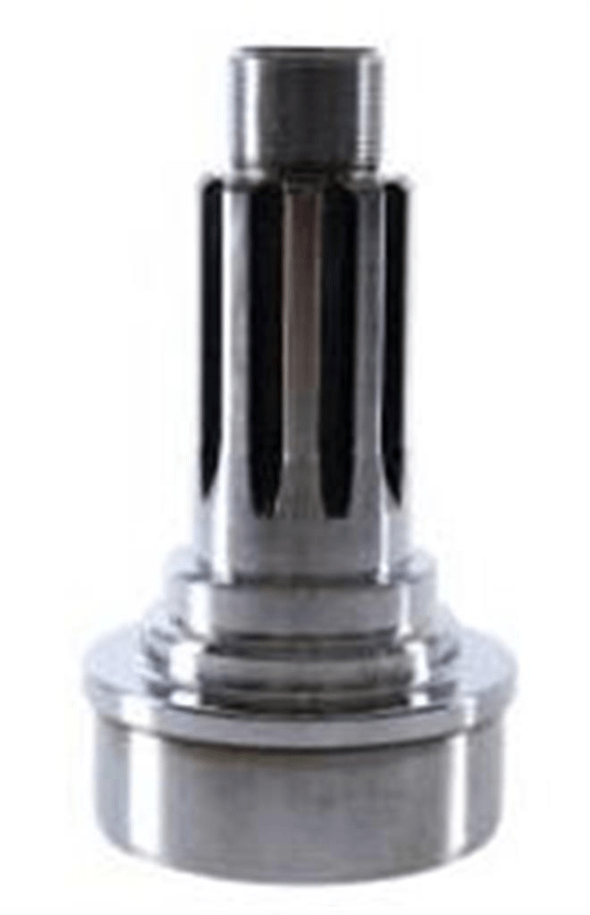

Description: MIDSHIP TUBE WITH THREAD 1"1/4X18 F.P.P 10 SPLINE (R)
Applications:
- Cardan
Material: Steel
Extra: MONTA COM SUPORTE REI: R-3030 / R-3034 / R-3062 / R-3064
Original code: 301123 | 801504 | NC12013 | PT1024 | SP16 | 453341
Original code: 301123 | 801504 | NC12013 | PT1024 | SP16 | 453341
Original code: 301123 | 801504 | NC12013 | PT1024 | SP16 | 453341
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3042 | VOLKSWAGEN, FORD, IVECO | Cardan | 104,30 | 84,40 | 45,00 | 16-R | 1 1/4X18F.P.P | 36,70 | 44,40 |
