SP-3039 Luva deslizante
Embalagem com 1 peça
Peso: 3,05 (kg)

(SP-3039) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN, CHEVROLET GMC e LINHA AMARELA.

Assemble with: C014 / SP3041

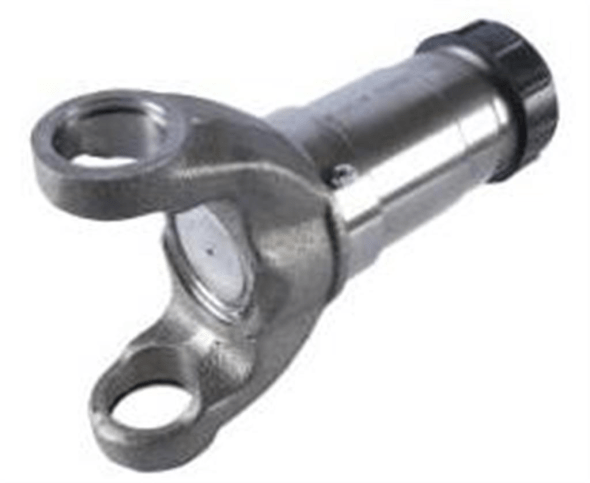

Description: SLIP YOKE 16 SPLINE (R)

Applications:
- Cardan

Extra: RASPADOR ESTRIADO

manufacturers
FORD
VOLKSWAGEN
CHEVROLET GMC
LINHA AMARELA
Access catalog
VOLKSWAGEN

Código original: 2S0521131 / T11522135

Material: Nodular

VW:
12190E 15190 15180 15170
Delivery:
10160
Constellation:
8160 13180 Constellation
Micro:
Micro 9160
Worker:
13180 Worker
CHEVROLET GMC

Código original: 94625916

Material: Nodular

Chevrolet:
A/C/D
FORD

Código original: 85HU4841A

Material: Nodular

Cargo:
Cargo 2217 Cargo 1618 Cargo 1418 Cargo 1114 Cargo 1225 Cargo 1215 Cargo 1119 Cargo 1116 Cargo 1514 Cargo 1615 Cargo 1415 Cargo 1317 Cargo 1218 Cargo 1517 Cargo 1617 Cargo 2218
FORD:
F14000
LINHA AMARELA

Material: Nodular

Luva deslizante
Luva deslizante
ReferenceCrossheadMeasure A (mm)Crosshead Diameter (mm)Stretch marksCrosshead Length (mm)Diameter A Smaller (mm)Diameter B Bigger (mm)
SP-30395-275X175,534,916 - R126,138,444,5
Reference
SP-3039
Crosshead
5-275X
Measure A (mm)
175,5
Crosshead Diameter (mm)
34,9
Stretch marks
16 - R
Crosshead Length (mm)
126,1
Diameter A Smaller (mm)
38,4
Diameter B Bigger (mm)
44,5
