(SP-3037) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C009 / S339 / S359 / S395 / S701 / S703 / SC10356 / SP3036 / SP3048

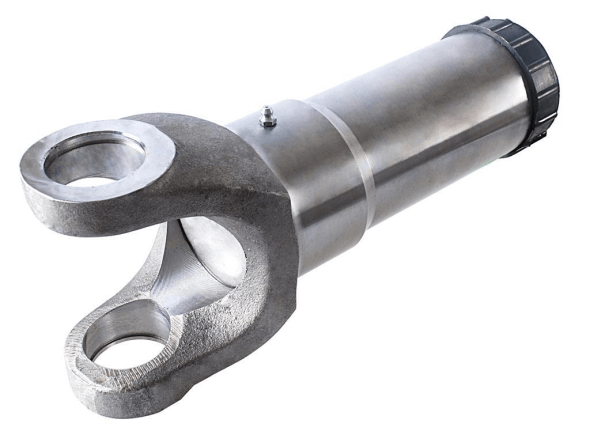

Description: SLIP YOKE 16 SPLINE (R)
Applications:
- Cardan
Material: Steel
Original code: 3354100308 | 03423XS |41072 | 801410 | HLV602 | LV1345 | NC08018 | SL18
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3037 | MERCEDES BENZ | Cardan | 275,50 | 120,30 | C-009 / 5-12100X | 45,00 | 16-R | 55,25 | 63,50 |
