(SP-3036) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S339 / S359 / S395 / S701 / S703 / SC10356 / SP3037 / SP3048

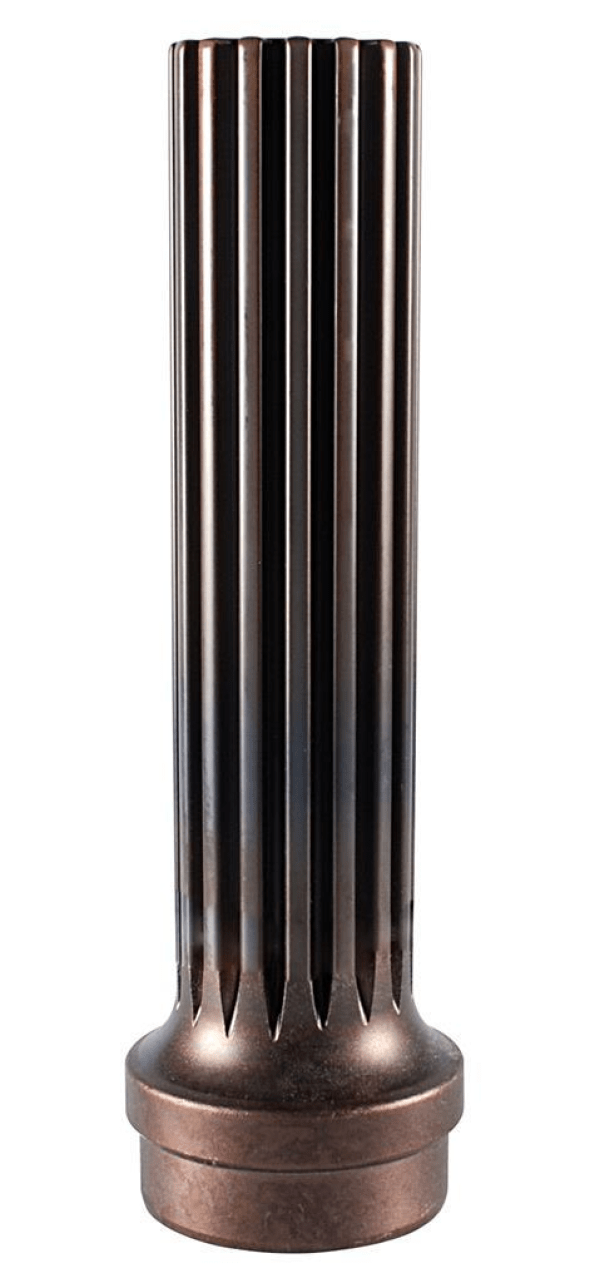

Description: SLIP STUBE SHAFT 16 SPLINE (R)
Applications:
- Cardan
Material: Steel
Original code: 41059 | 801613 | NC11015 | PT1328 | RPT618 | SP18 | 3354110002 | 401560
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento da face ate encosto tubo |
B ( mm ) Ø Base da ponteira |
C ( mm ) Ø Estrias |
D ( mm ) Comprimento das estrias |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| SP-3036 | MERCEDES BENZ | Cardan | 276,50 | 82,00 | 63,50 | 223,00 | 16-R | 49,60 | 63,50 |
