(SP-3035) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S407 /S414 / S415 / S424 / S425 / SP3026 / SP4002

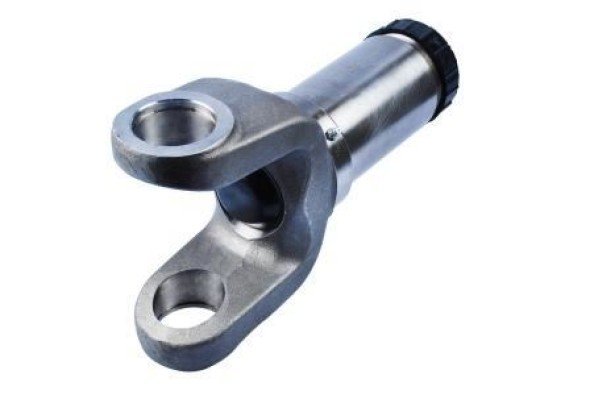

Description: SLIP YOKE 12 SPLINE (R)
Applications:
- Cardan
Material: Steel
Original code: 207989 | 003541XL | 201077 | 201088 | 801421 | HLV613 | LV1451 | SL19
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3035 | SCANIA | Cardan | 265,50 | 164,00 | 5-12278X | 50,00 | 12-R | 52,35 | 62,00 |
