(SP-3032) compatible with vehicles from the following manufacturers: AMERICANA.

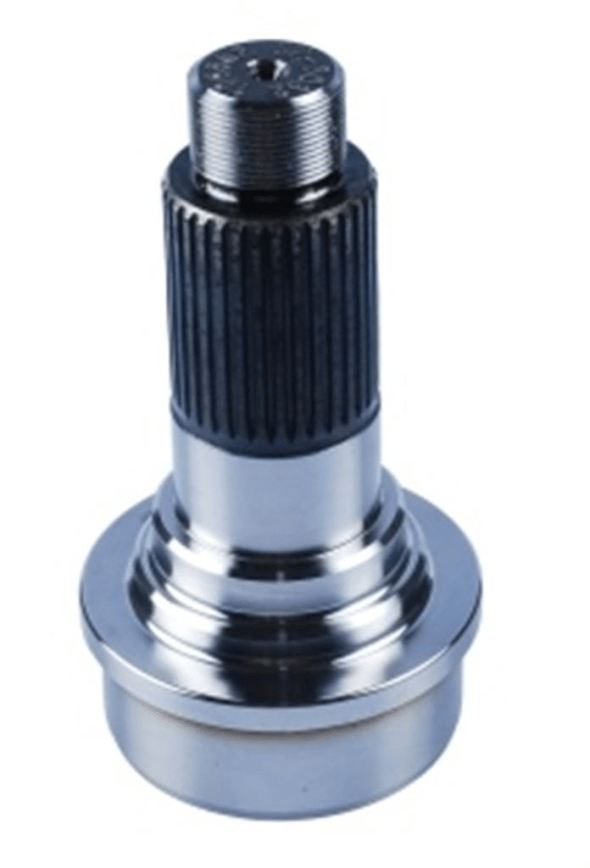

Description: MIDSHIP TUBE WITH THREAD 1"1/4X18 F.P.P 34 SPLINE (E)
Applications:
- Cardan
Material: Steel
Extra: MONTA COM SUPORTE REI: R-3030 / R-3034 / R-3062 / R-3064
Original code: 553261
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3032 | AMERICANA | Cardan | 111,00 | 82,25 | 45,00 | 34-E | 1 1/4X18F.P.P | 41,80 | 44,60 |
