(SP-3031) compatible with vehicles from the following manufacturers: MERCEDES BENZ, FORD, VOLKSWAGEN, VOLVO e AGRALE.
Assemble with: C008 / S305 / S311 / S349 / S350 / S351 / SC10346 / SC10347 / SC10358 / SP3004 / SP3006 / SP3016 / SP3017

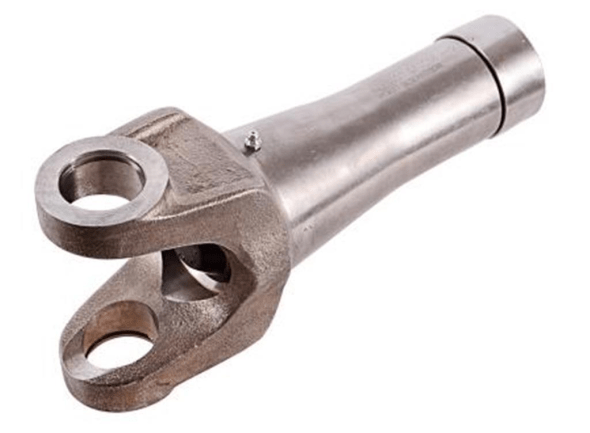

Description: SLIP YOKE 30 SPLINE (E)
Applications:
- Cardan
Material: Nodular
Extra: Substitui: SP-3007
Original code: 6954100008 | 2TG521353 | SP3007 | 90321X | 41077A | 41694 | 801406 | LV1063 | NC08001 | RLV619 | SL15
Original code: 6954100008 | 2TG521353 | SP3007 | 90321X | 41077A | 41694 | 801406 | LV1063 | NC08001 | RLV619 | SL15
Original code: 6954100008 | 2TG521353 | SP3007 | 90321X | 41077A | 41694 | 801406 | LV1063 | NC08001 | RLV619 | SL15
Original code: 6954100008 | 2TG521353 | SP3007 | 90321X | 41077A | 41694 | 801406 | LV1063 | NC08001 | RLV619 | SL15
Original code: 6954100008 | 2TG521353 | SP3007 | 90321X | 41077A | 41694 | 801406 | LV1063 | NC08001 | RLV619 | SL15
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3031 | MERCEDES BENZ, VOLKSWAGEN, VOLVO, FORD, AGRALE | Cardan | 257,00 | 126,00 | C-008 / SPL90-1X | 41,30 | 30-E | 45,90 | 49,40 |
