(SP-3029) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN e AMERICANA.
Assemble with: S627 / SP3022 / SP322N / SP3028 / SP3030

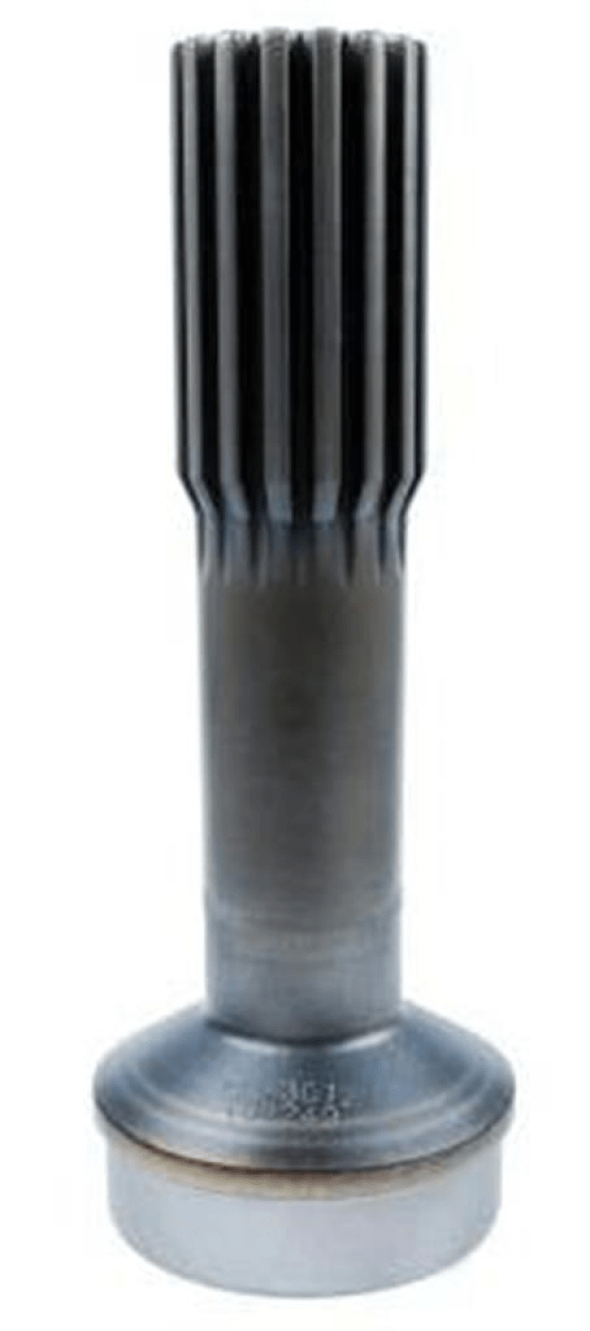

Description: SLIP STUBE SHAFT 16 SPLINE (R)
Applications:
- Cardan
Material: Steel
Original code: 17N40521 | 41398 | PT1937 | 640521
Original code: 17N40521 | 41398 | PT1937 | 640521
Original code: 17N40521 | 41398 | PT1937 | 640521
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento da face ate encosto tubo |
B ( mm ) Ø Base da ponteira |
C ( mm ) Ø Estrias |
D ( mm ) Comprimento das estrias |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| SP-3029 | VOLKSWAGEN, FORD, AMERICANA | Cardan | 272,00 | 95,00 | 63,50 | 101,50 | 16-R | 49,60 | 63,50 |
