SP-3028 Ponteira com rosca (fixa)
Embalagem com 1 peça
Peso: 3,85 (kg)

(SP-3028) compatible with vehicles from the following manufacturers: FORD e VOLKSWAGEN.

Assemble with: S333 / S627 / S684 / SC10358 / SP3022 / SP3022N / SP3029

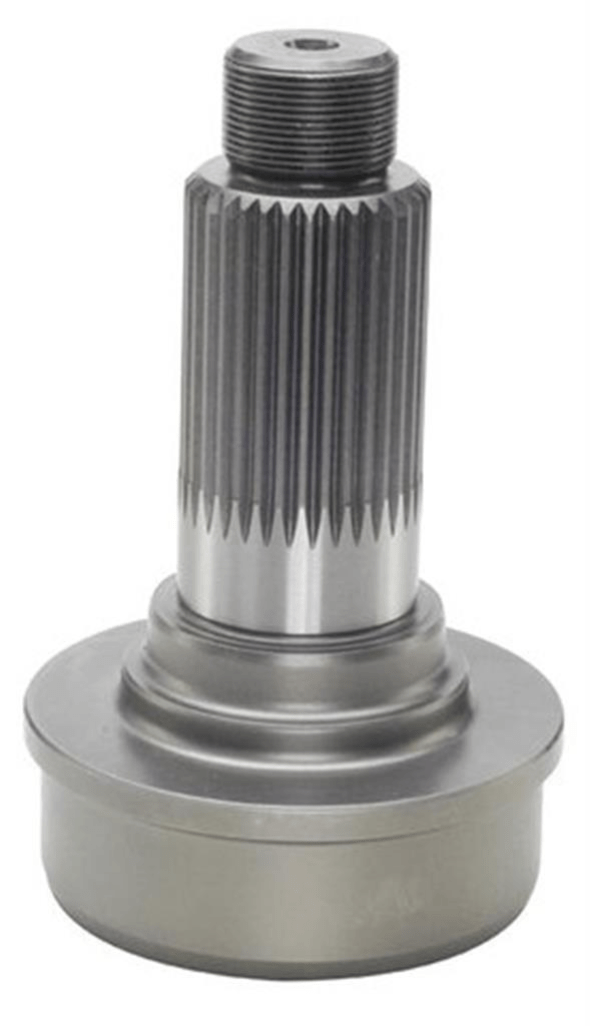

Description: MIDSHIP TUBE WITH THREAD 1"1/4X18 .F.P.P 38 SPLINE (E)

Applications:
- Cardan

Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF / MONTA COM SUPORTE REI: R-3035 / R-3045 / R-3054 / R-3066 / R-3067 / R-3089

manufacturers
FORD
VOLKSWAGEN
Access catalog
VOLKSWAGEN

Material: Aço

VW:
24280
Constellation:
25280 Costellation
FORD

Material: Aço

Cargo:
Cargo 2428 Cargo 2528
Ponteira com rosca (fixa)
Ponteira com rosca (fixa)
ReferenceMeasure A (mm)Measure B (mm)Measure C (mm)Stretch marksMeasure D (mm)ThreadDiameter A Smaller (mm)Diameter B Bigger (mm)
SP-3028131955038 - E49,41"1/4X18FPP46,949,75
Reference
SP-3028
Measure A (mm)
131
Measure B (mm)
95
Measure C (mm)
50
Stretch marks
38 - E
Measure D (mm)
49,4
Thread
1"1/4X18FPP
Diameter A Smaller (mm)
46,9
Diameter B Bigger (mm)
49,75
