(SP-3027) compatible with vehicles from the following manufacturers: VOLKSWAGEN, VOLVO e IVECO.
Assemble with: S236 / S669 / S670 / S697 / S721 / SC10387

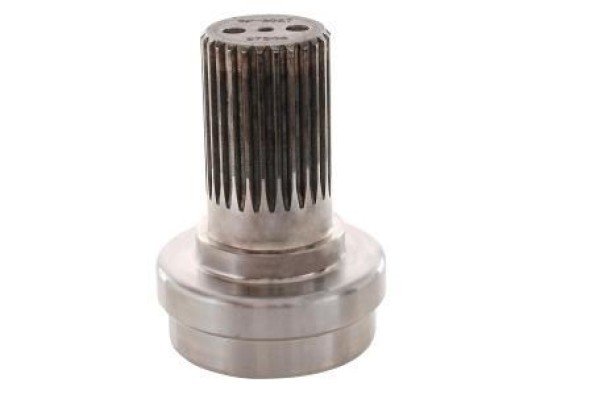

Description: MIDSHIP TUBE WITH THREAD 26 SPLINE (E)
Applications:
- Central
Material: Steel
Extra: MONTA COM SUPORTE REI: R-1026 / R-1036 / R-2006
Original code: 21081144 | 2060054 | 41356
Original code: 21081144 | 2060054 | 41356
Original code: 21081144 | 2060054 | 41356
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3027 | VOLKSWAGEN, VOLVO, IVECO | Central | 126,50 | 118,30 | 70,00 | 26-E | M12X1,50 | 64,00 | 69,90 |
