(SP-3026) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S407 / S414 / S415 / S424 / S425 / S465 / SP3035 / SP4002

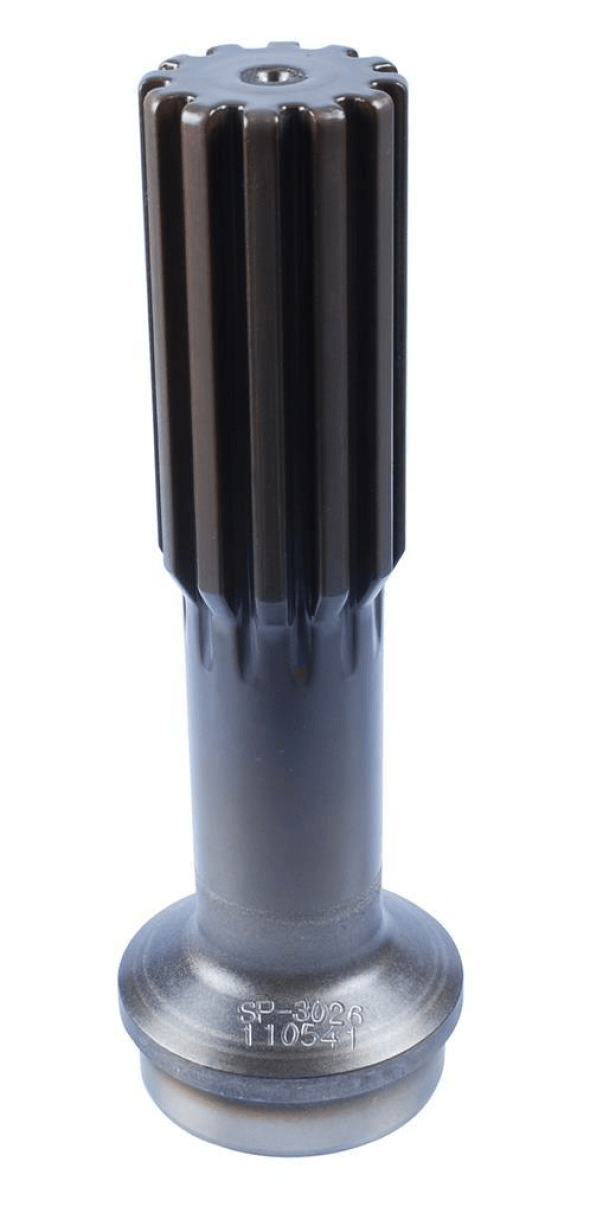

Description: SLIP STUBE SHAFT 12 SPLINE (R)
Applications:
- Cardan
Material: Steel
Original code: 201088 | 801619 | NC11017 | PT1421 | RPT611 | SP19 | 208074 | 401723
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento da face ate encosto tubo |
B ( mm ) Ø Base da ponteira |
C ( mm ) Ø Estrias |
D ( mm ) Comprimento das estrias |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| SP-3026 | SCANIA | Cardan | 260,00 | 85,50 | 61,20 | 120,00 | 12-R | 47,10 | 61,80 |
