(SP-3024) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S611 / S612 / S624 / S637 / S691 / S718

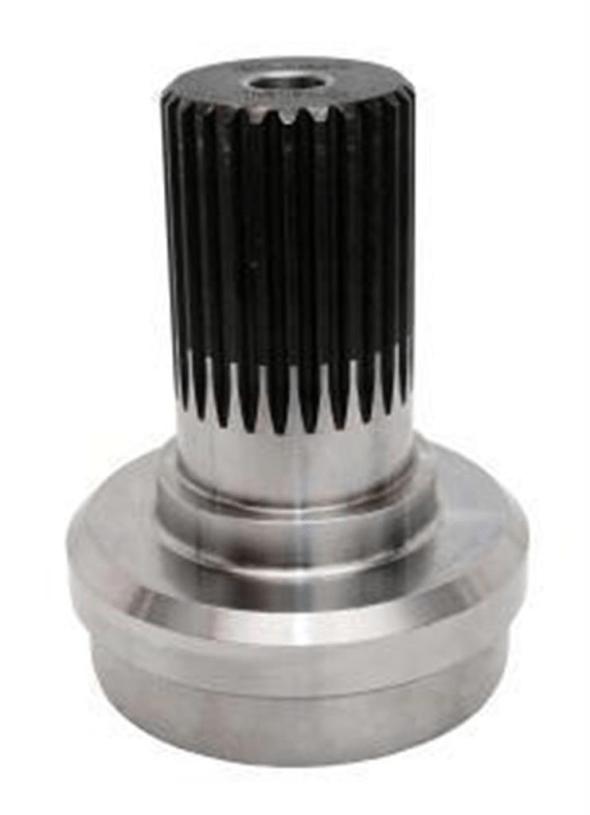

Description: MIDSHIP TUBE WITH THREAD 26 SPLINE (E)
Applications:
- Central
Material: Steel
Extra: BASE MAIOR / MONTA COM SUPORTE REI: R-3022 / R-3076 / R-3090 / R-3091
Original code: 41435
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3024 | MERCEDES BENZ | Central | 155,00 | 130,30 | 70,00 | 26-E | M20X1,50 | 64,00 | 69,90 |
