(SP-3023) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S314 / S327 / S337 / S387 / S637

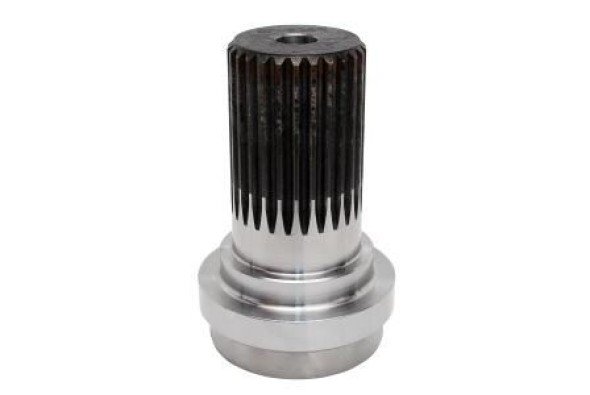

Description: MIDSHIP TUBE WITH THREAD 26 SPLINE (E)
Applications:
- Central
Material: Steel
Extra: BASE MENOR / MONTA COM SUPORTE REI: R-3022 / R-3076
Original code: 41434
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3023 | MERCEDES BENZ | Central | 150,00 | 98,00 | 70,00 | 26-E | M20X1,50 | 64,00 | 69,90 |
