(SP-3021) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S203 / S303 / S-304 / S308 / S-320 / S-334 / S619 / S620 / S688 / SC-10410

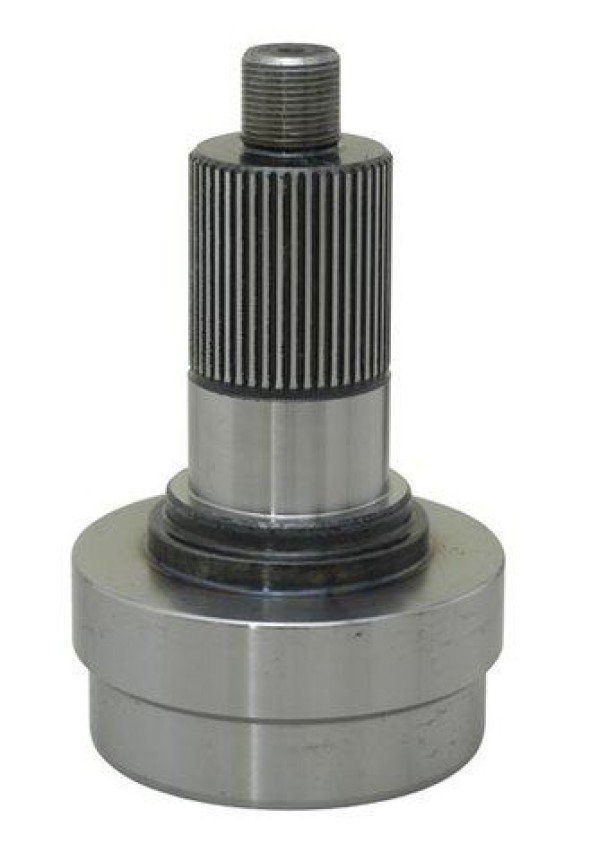

Description: MIDSHIP TUBE WITH THREAD M30X2,0MM 46 SPLINE (E)
Applications:
- Cardan
Material: Steel
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF / BASE ALTA PARA COMPENSAR COMPRIMENTO DO TUBO / MONTA COM SUPORTE REI: R-3050 / R-3087 / R-4005 / R-4015
Original code: 41433 | HPT632 | 2505331X
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3021 | MERCEDES BENZ | Cardan | 153,00 | 120,40 | 60,00 | 46-E | M30X2,0 | 56,50 | 59,40 |
