(SP-3017) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S-305 / S-311 / S-350 / SC-10347 / SC-10358 / SP-3006 / SP-3007 / SP-3016 / SP-3031

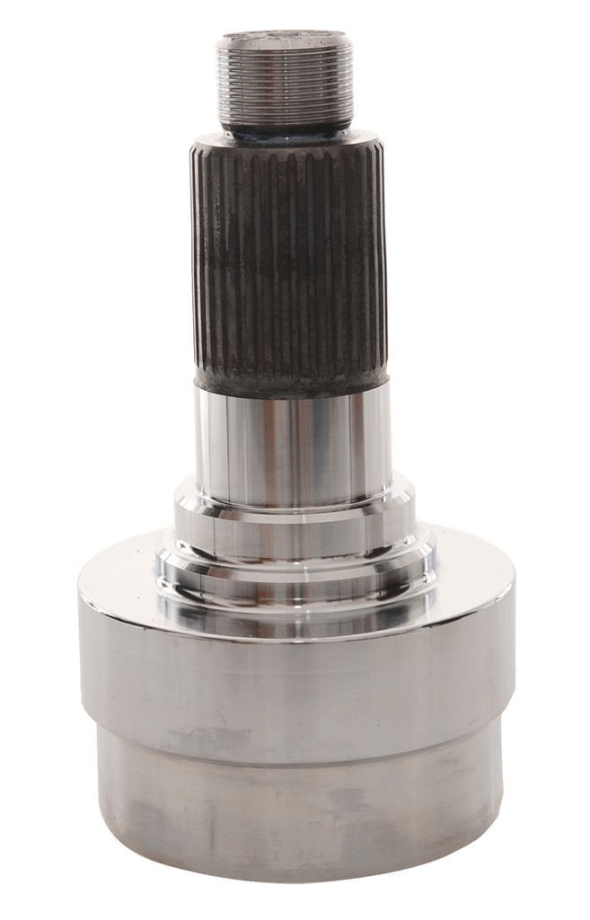

Description: MIDSHIP TUBE WITH THREAD 1"1/4X18 F.P.P 34 SPLINE (E)
Applications:
- Cardan
Extra: BASE ALTA PARA COMPENSAR COMPRIMENTO DO TUBO / MONTA COM SUPORTE REI: R-1058 / R-1072 / R-3030 / R-3034 / R-3037 / R-3042 / R-3051 / R-3062 / R-3063 / R-3064 / R-3077 / R-3080 / R-3081
Material: Aço
| Reference | Measure A (mm) | Measure B (mm) | Measure C (mm) | Stretch marks | Measure D (mm) | Thread | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|
| SP-3017 | 131,5 | 95 | 45 | 34 - E | 44,5 | 1"1/4X18FPP | 41,8 | 44,6 |
