(SP-3011) compatible with vehicles from the following manufacturers: MERCEDES BENZ, VOLKSWAGEN, VOLVO e IVECO.
Assemble with: S-203 / S-303 / S-304 / S-308 / S-320 / S-334 / S-619 / S-620 / S-688 / SC-10410

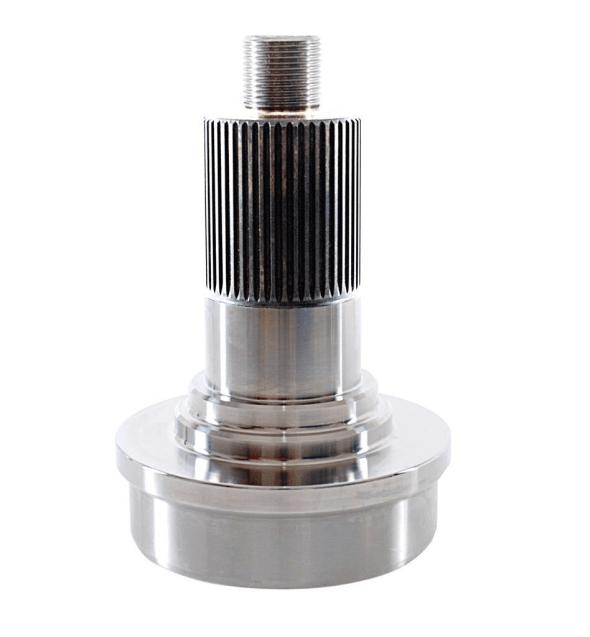

Description: MIDSHIP TUBE WITH THREAD M30X2,0MM 46 SPLINE (E)
Applications:
- Cardan
Material: Steel
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF / MONTA COM SUPORTE REI: R-3050 / R-3087 / R-4005 / R-4015
Original code: 250N5311 | 41154 | 801513 | PT1036 | RPT612 | SP20 | 2505311 | 5010141
Original code: 250N5311 | 41154 | 801513 | PT1036 | RPT612 | SP20 | 2505311 | 5010141
Original code: 250N5311 | 41154 | 801513 | PT1036 | RPT612 | SP20 | 2505311 | 5010141
Original code: 250N5311 | 41154 | 801513 | PT1036 | RPT612 | SP20 | 2505311 | 5010141
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento inicio rosca ate encosto tubo |
B ( mm ) Ø Base da ponteira |
Ø Rolamento ( mm ) Ø Rolamento |
Quant. Estrias |
Rosca |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-3011 | MERCEDES BENZ, VOLKSWAGEN, VOLVO, IVECO | Cardan | 134,00 | 120,40 | 60,00 | 46-E | M30X2,00 | 56,50 | 59,40 |
