(SP-3004) compatible with vehicles from the following manufacturers: MERCEDES BENZ, FORD, VOLKSWAGEN, VOLVO, CHEVROLET GMC, AGRALE e IVECO.
Assemble with: S300 / S301 / S305 / S306 / S307 / S309 / S311 / S350 / SC10346 / SC10347 / SC10358 / SP3006 / SP3007 / SP3009 / SP3010 / SP3016 / SP3031 / SP3050

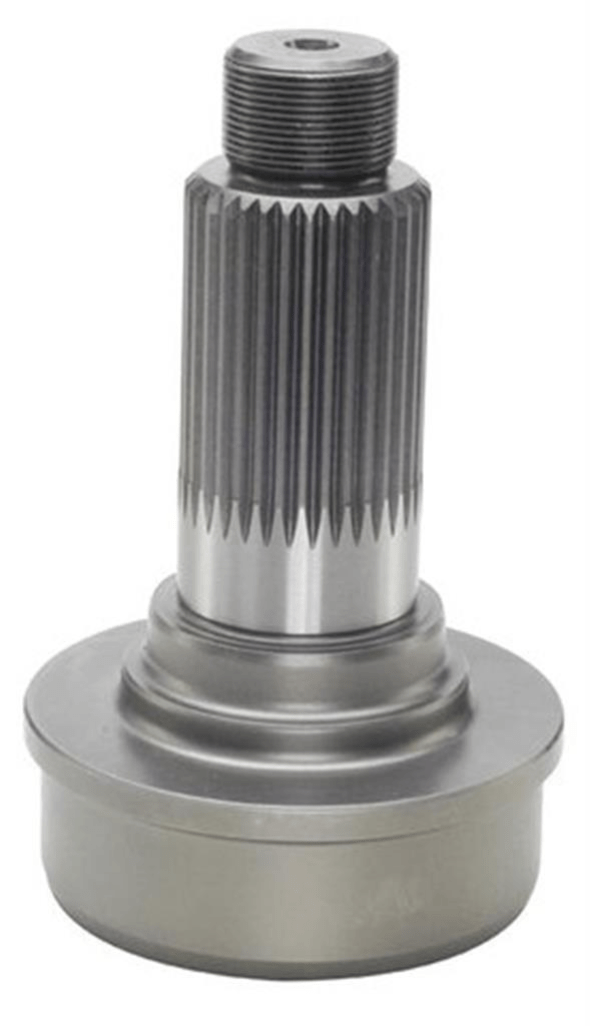

Description: MIDSHIP TUBE WITH THREAD 1"1/4X18 F.P.P 34 SPLINE (E)
Applications:
- Cardan
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF / MONTA COM SUPORTE REI: R-1058 / R-1072 / R-3030 / R-3034 / R-3037 / R-3042 / R-3051 / R-3062 / R-3063 / R-3064 / R-3077 / R-3080 / R-3081
Código original: 3864110502
Material: Aço
Material: Aço
Material: Aço
Material: Aço
Material: Aço
Material: Aço
Material: Aço
| Reference | Measure A (mm) | Measure B (mm) | Measure C (mm) | Stretch marks | Measure D (mm) | Thread | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|
| SP-3004 | 109,5 | 95 | 45 | 34 - E | 44,6 | 1"1/4X18FPP | 41,8 | 44,6 |
