(SP-3001) compatible with vehicles from the following manufacturers: MERCEDES BENZ, FORD, VOLKSWAGEN, INTERNATIONAL, LINHA AMARELA e IVECO.
Assemble with: S333 / S358 / S366 / S684 / SC10358 / SP3012 / SP3015 / SP3022 / SP3022N

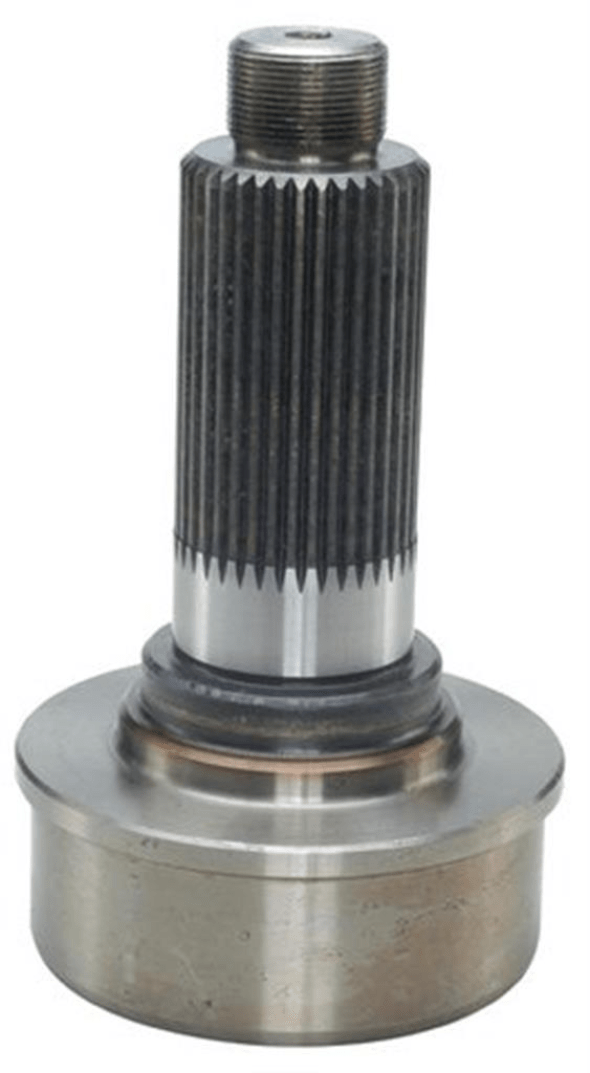

Description: MIDSHIP TUBE WITH THREAD 1"1/4X18 F.P.P 38 SPLINE (E)
Applications:
- Cardan
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF / MONTA COM SUPORTE REI: R-3035 / R-3045 / R-3054 / R-3066 / R-3067
Material: Aço
Material: Aço
Material: Aço
Material: Aço
Material: Aço
Material: Aço
Material: Aço
| Reference | Measure A (mm) | Measure B (mm) | Measure C (mm) | Stretch marks | Measure D (mm) | Thread | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|
| SP-3001 | 131 | 107,8 | 50 | 38 - E | 49,4 | 1"1/4X18FPP | 46,9 | 49,75 |
