(SP-113) compatible with vehicles from the following manufacturers: MERCEDES BENZ e LINHA VERDE.
Assemble with: C005 / S127 / S128 / S186 / S302 / S313 / S384 / SP114 / SP3047

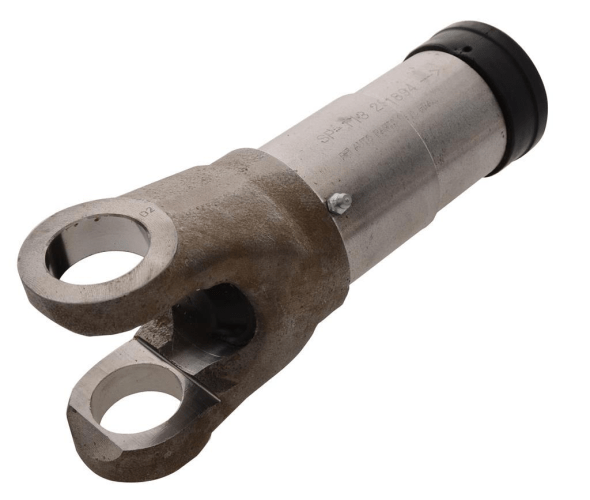

Description: SLIP YOKE 16 SPLINE (R)
Applications:
- Cardan
Material: Steel
Extra: SUBSTITUI: S-176
Original code: 3444100108 | 3444100188 | 261970 | S176 | 03339XS | 41071 | 801400 | HLV601 | LV1343 | NC08004 | SL06
Original code: 3444100108 | 3444100188 | 261970 | S176 | 03339XS | 41071 | 801400 | HLV601 | LV1343 | NC08004 | SL06
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| SP-113 | MERCEDES BENZ, LINHA VERDE, LINHA VERDE | Cardan | 219,50 | 100,00 | C-005 / 5-12213X | 38,00 | 16-R | 44,50 | 50,85 |
