(S-978) compatible with vehicles from the following manufacturers: VOLKSWAGEN.
Assemble with:

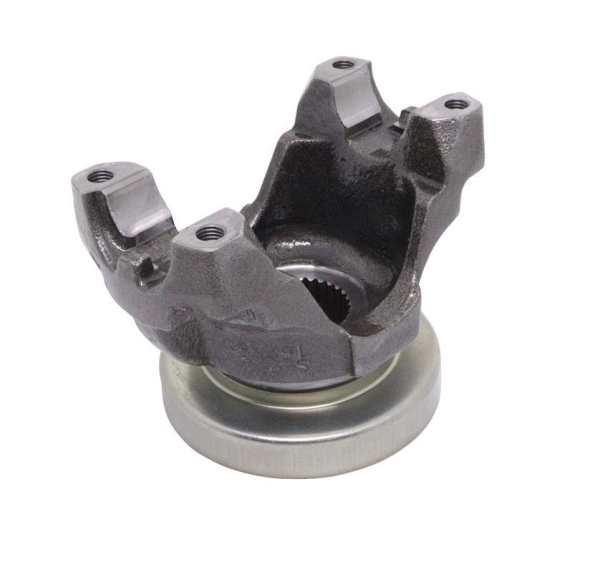

Description: VW DELIVERY EXPRESS 30 SPLINE DIFFERENTIAL YOKE TERMINAL
Applications:
-
Extra: Diferencial AAM
| Reference | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|
| S-978 | 89 | 49,3 | 30,16 | 30-E | 5/16 24 UNF PASSANTE | 106,2 | 31,46 | 33,35 |
