(S-973) compatible with vehicles from the following manufacturers: VOLKSWAGEN e MAN.
Assemble with: SP-3090 / SP-3094 / SP-3095

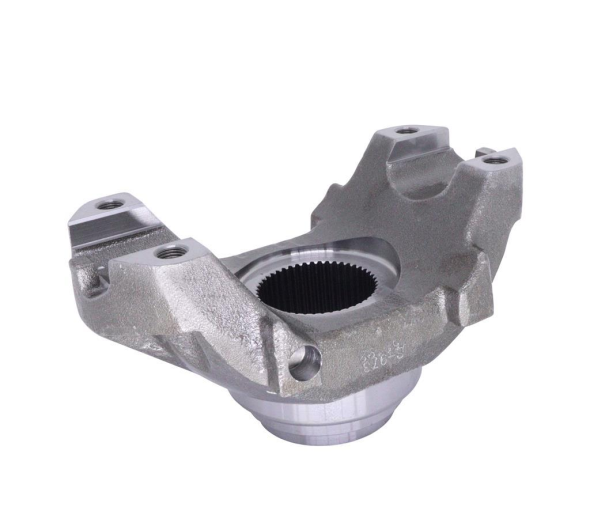

Description: CENTRAL YOKE TERMINAL 46 SPLINES ( AND ) VW CONSTELATION AND MAN TGX
Applications:
- Central
Material: Steel
Original code: 2U2525459 | 25WYSC3811
Original code: 2U2525459 | 25WYSC3811
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-973 | VOLKSWAGEN, MAN | Central | 124,50 | 73,10 | 2T2521291B / RPL20 | 213,00 | 50,90 | 1/2 | 46-E | 57,00 | 60,20 |
