(S-968) compatible with vehicles from the following manufacturers: INTERNATIONAL e AMERICANA.
Assemble with: S-963 / C-025

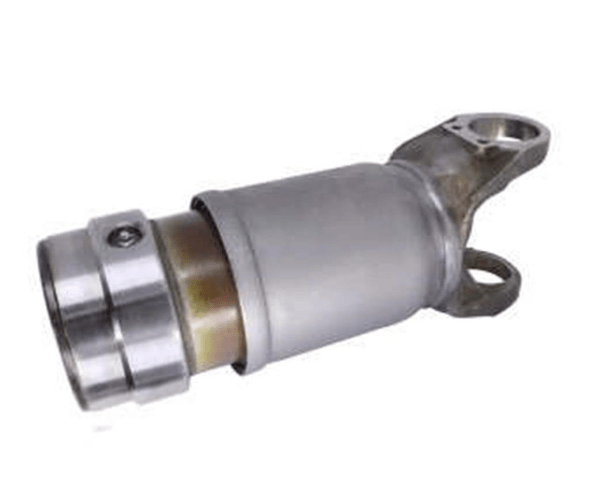

Description: SLIDING ASSEMBLY 38 SPLINES (E) BASE 120 MM
Applications:
- Cardan
Material: Steel
Original code:
Original code: 1708219
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento centro olhal ate encosto tubo |
B ( mm ) Comprimento cruzeta sem travas |
C ( mm ) Ø Base encaixe do tubo |
Cruzeta |
Ø Cruzeta ( mm ) |
Quant. Estrias |
|---|---|---|---|---|---|---|---|---|
| S-968 | AMERICANA, INTERNATIONAL | Cardan | 279,50 | 164,00 | 120,50 | C-025 / SPL170X | 55,00 | 38-E |
