(S-950) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C008

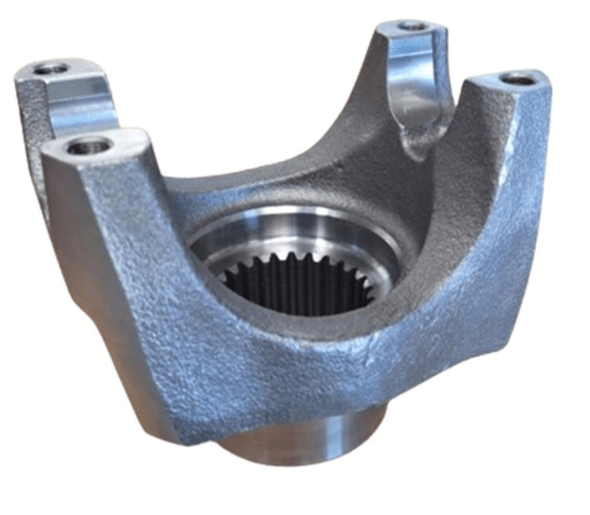

Description: TERMINAL YOKE DO DIFERENCIAL 26 ESTRIAS
Applications:
- Diferencial
Material: Steel
Original code: 9793500144
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-950 | MERCEDES BENZ | Diferencial | 116,50 | 78,00 | C-008 / SPL90-1X | 126,00 | 41,30 | M10X1,00 | 26-E | 49,75 | 55,20 |
