(S-948) compatible with vehicles from the following manufacturers: VOLKSWAGEN.
Assemble with: C003

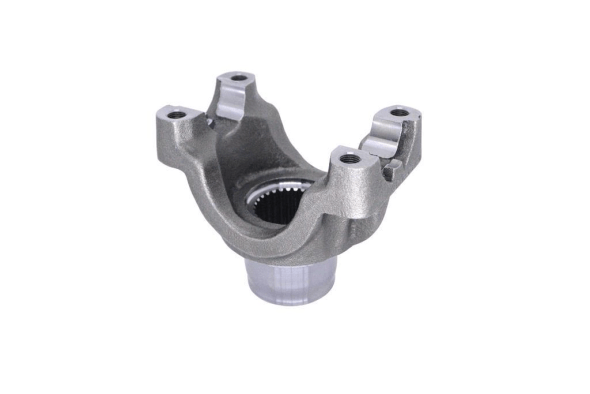

Description: YOKE GEAR TERMINAL ZF S5-420 29 SPREADS (E)
Applications:
- Cambio
Material: Steel
Original code: 34149211 | 1307395146
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-948 | VOLKSWAGEN | Cambio | 98,80 | 49,90 | C-003 / 5-263X | 106,20 | 34,90 | 3/8 | 29-E | 35,65 | 38,00 |
