(S-939) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S-469 / S-470 / S-471 / S-525

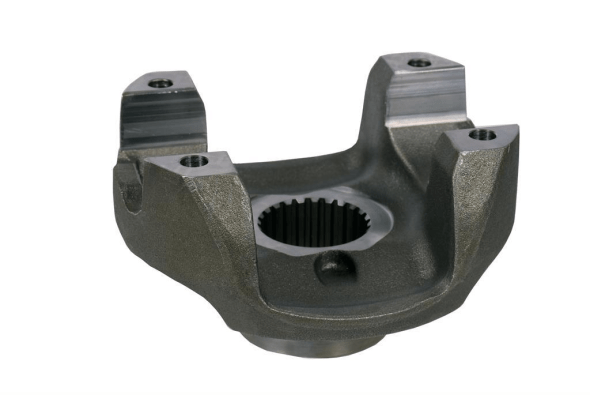

Description: END YOKE NTG DIFFERENTIALS 24 SPLINE
Applications:
- Diferencial
Material: Steel
Extra: CRUZETA: 2587773
Original code:

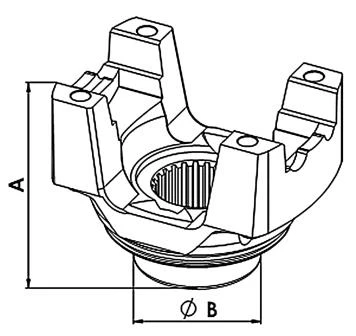

| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzeta sem Travas Comprimento da cruzeta sem travas |
Ø Cruzeta |
Rosca |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-939 | SCANIA | Diferencial | 122,00 | 85,00 | C-032B / 2587773 | 182,20 | 65,00 | M12X1,75 | 24-E | 56,25 | 59,90 |
