(S-841) compatible with vehicles from the following manufacturers: AMERICANA.
Assemble with: C015 / SP-3017 / SP-3019 / SC-10358 / SC-10344

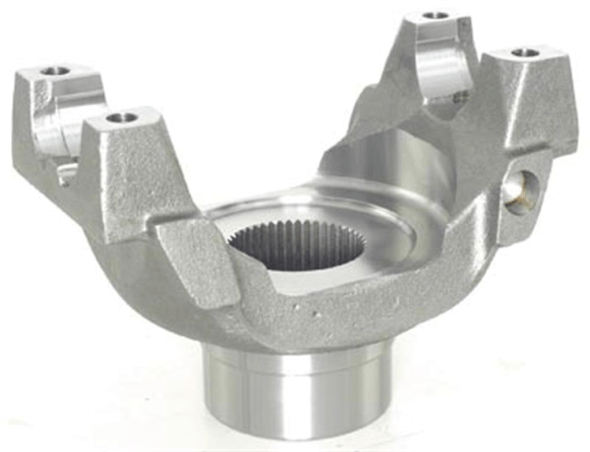

Description: END YOKE 46 SPLINE (E) THREAD 1/2"X20 F.P.P
Applications:
- Diferencial
Material: Steel
Original code: 6544271X
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-841 | AMERICANA | Diferencial | 145,50 | 89,00 | C-015 / 5-510X / 5-281X | 194,00 | 49,20 | 1/2"X20F.P.P | 46-E | 57,50 | 60,20 |
