(S-838) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S409 / S435 / S450 / S451 / S951

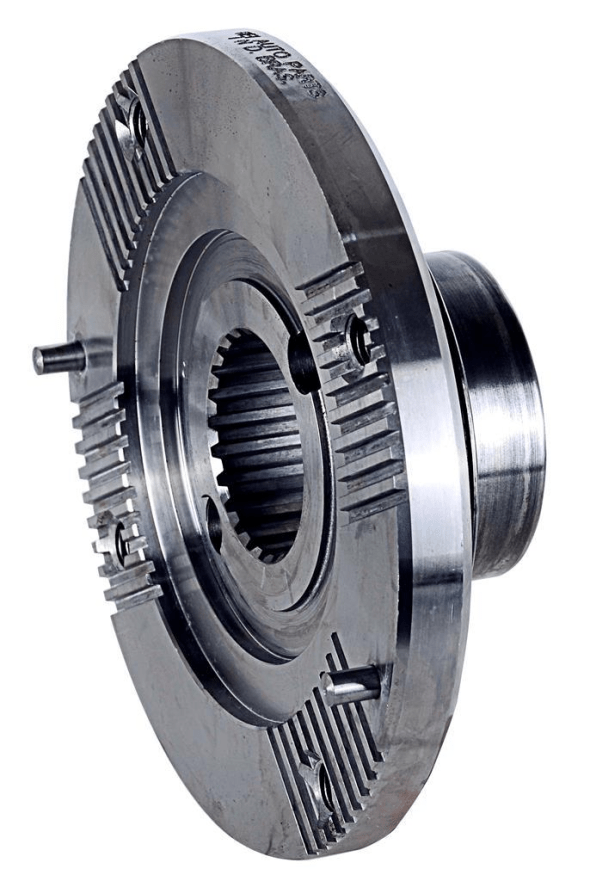

Description: COMPANION FLANGE TRANSMISSION BOX 24 SPLINE (E) 4 HOLES P600 / P640
Applications:
- Cambio
Material: Steel
Extra: CAMBIOS: GR875 / GR875R / GRS895 / GRS895R / GRS0905 / GRS0905R / ROSCA: M14X2,00
Original code: 1868016
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-838 | SCANIA | Cambio | 85,00 | 208,00 | 71,00 | 15,50 | 24-E | 50,70 | 56,25 |
